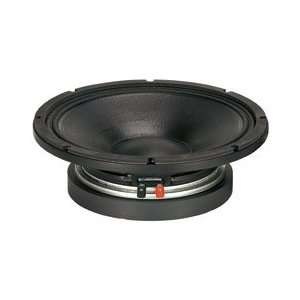

RCF L12P110K - 12" 500W 8 Ohm
THIS ITEM IS END-OF-LINE AND DUE TO BE PHASED OUT
Once our stock has been depleted we will not be able to order more.
Very high efficiency and low distortion are special features of this mid-bass transducer.
Special treatment are applied to cone surface and surround for optimum damping.
Applications:
The L12P110K is specially designed for compact size bass reflex enclosures.
The unique combination of short voice coil and very high BL / Re ratio makes the L12P100K a very good choice when fast and precise mid-bass reproduction is required.
Very good for high power horn loaded applications.
Main Features:
- 4-inch, fiberglass inside/outside copper voice coil
- 1000W continuous program power handling
- 101 dB Sensitivity
- 60 Hz - 2 kHz Frequency range
- M-roll damped surround
- Corrugated straight damped cone
This product has been discontinued - please do not try to order this item we will not be able to supply it - the product details are here for reference only. Please contact a member of staff, and we may be able to find an equivalent product for you.
General Specifications
- Nominal Diameter: 300 mm / 12 inch
- Rated Impedance: 8 Ω
- Program Power: 1000 W AES
- Power handling capacity: 500 W AES
- Sensitivity: 101 dB
- Frequency Range: 60 Hz - 2000 Hz
- Effective Piston Diameter: 260 mm / 10.2 inch
- Max Excursion Before Damage (peak to peak): 48 mm / 1.9 inch
- Minimum Impedance: 7.6 Ω
- Voice Coil Diameter: 100 mm / 4 inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 10.5 mm / 0.4 inch
- Number of layers: 2
- Kind of layer: inside / outside
- Top Plate Thickness: 9 mm / 0.35 inch
- Cone Material: No pressed pulp
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M - roll
Thiele/Small Parameters
- Resonance frequency: 44 Hz
- DC resistance: 5.6Ω
- Mechanical factor: 4.3
- Electrical factor: 0.14
- Total factor: 0.13
- BL Factor: 25 T · m
- Effective Moving Mass: 55 g
- Equivalent Cas air load: 98 liters
- Effective piston area: 0.053 m²
- Max. linear excursion (mathematical): 3.0 mm
- Voice - coil inductance @ 1kHz: 1.0 mH
- Half-space efficiency: 5.75%
Mounting information
- Overall Diameter: 312 mm / 12.3 inch
- Bolt Circle Diameter: 293-296 mm / 11.5-11.6 inch
- Bolt Hole Diameter: 7 mm / 0.3 inch
- Front Mount Baffle Cut-out: 285 mm / 11.3 inch
- Rear Mount Baffle Cut-out: 283 mm / 11.2 inch
- Depth: 115 mm / 4.5 inch
- Volume occupied by the driver: 2.8 litres / 0.09 ft³
- Net Weight: 11.2 kg / 24.6 lbs
|
| ||||||||||
