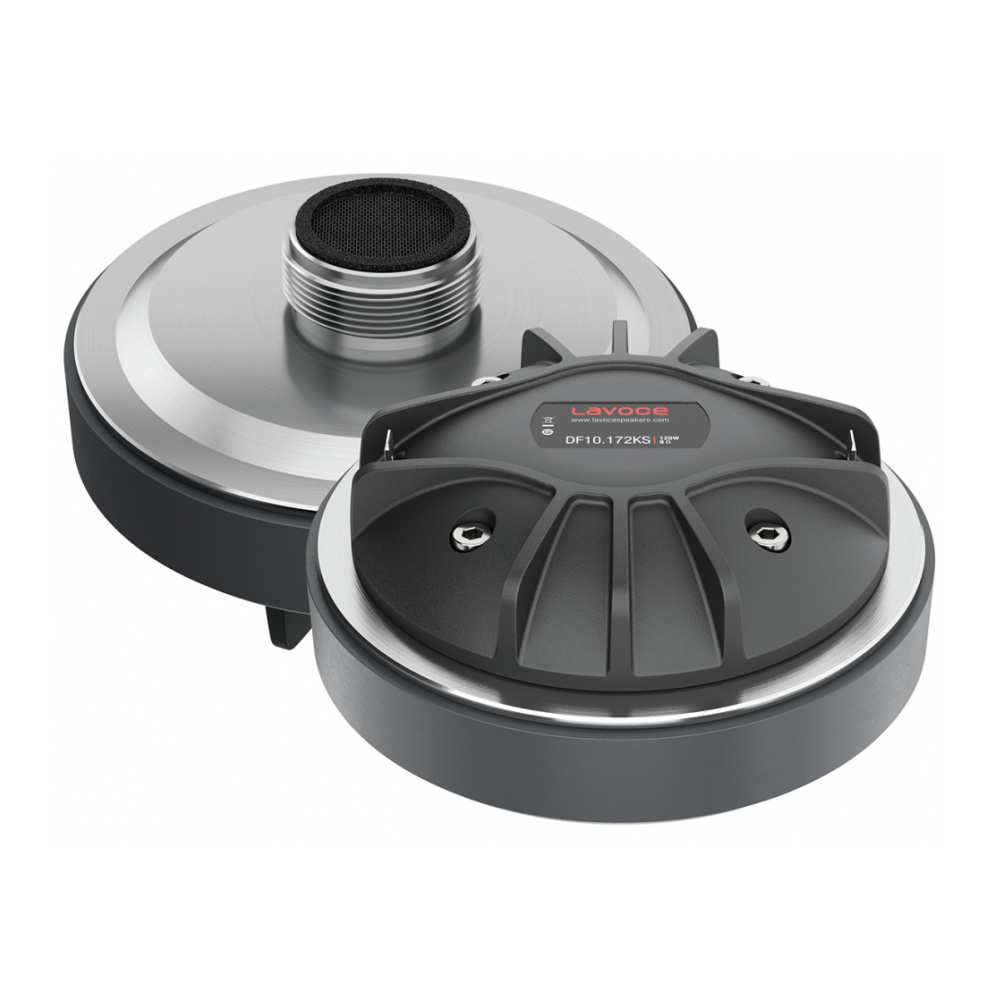

Lavoce DF10.172KS - 1" 60W 8 Ohm Compression Driver

SPL: 108.5dB
Product Code: LAVDF10172KSAF Brand: Lavoce Model: DF10.172KS
Lavoce DF10.172KS - 1 inch 60W 8 Ohm Compression Driver
£55.39
£55.39 ex VAT
Decrease Increase
Usually available in <br>3-5 months
Usually available in
3-5 months
£2.17 DELIVERY to mainland UK.
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
Lavoce DF10.172KS - 1" 60W 8 Ohm Compression Driver

Key features


- 108,5 dB/SPL SENSITIVITY
 - 120 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1000 - 20000 Hz FREQUENCY RANGE
- POLYIMIDE DIAPHRAGM

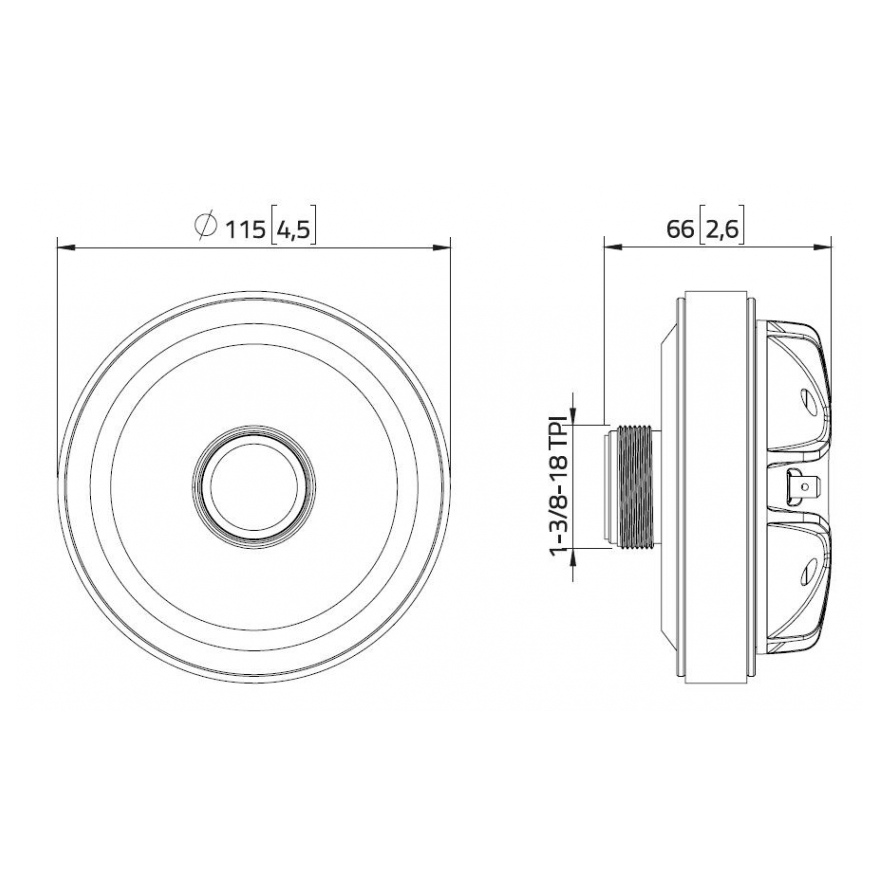

- SCREW-ON FITTING FOR 1-3/8 INCH-18 TPI THREADED HORNS
- NEXT GENERATION HF DESIGN

Technical specifications


  • Throat Diameter: 25.4 mm (1 in)
  • Impedance: 8 Ohm
  • Minimum Impedance: 7.3 Ohm
  • AES Power: 60 W
  • Program Power: 120 W

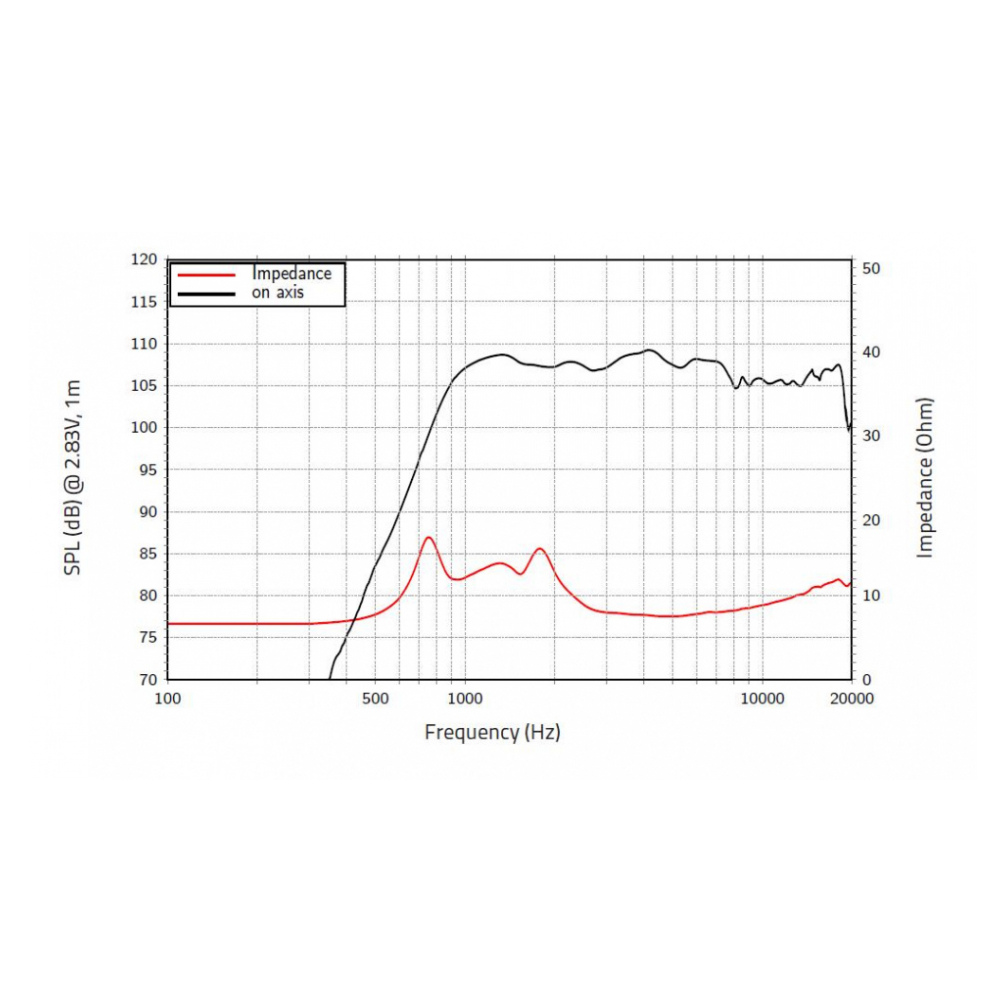

  • Sensitivity: 108.5 dB
  • Frequency Range: 1000 - 20000 Hz
  • Voice Coil Material: Edgewound CCA
  • Voice Coil Former: Kapton
  • Voice Coil Inductance: 0.08 mH
  • Diaphragm Material: Polyimide
  • Surround Material: Polyimide. vented
  • Magnet Material: Ferrite
  • Magnet Diameter: 114 mm (4.5 in)
  • Flux Density: 1.75 T
  • Driver Displacement Volume: 0.4 l (0.01 ft3)
  • Recommended Crossover: 1.6 kHz

Shipping Information


  • Multipack weight: 15.6 kg (34.4lb)
  • Multipack size W x D x H: 327 x 300 x 175 mm (12.9 x 11.8 x 6.9in)
  • Net weight: 1.7 kg (3.7lb)
  • Multipack Quantity: 12

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
