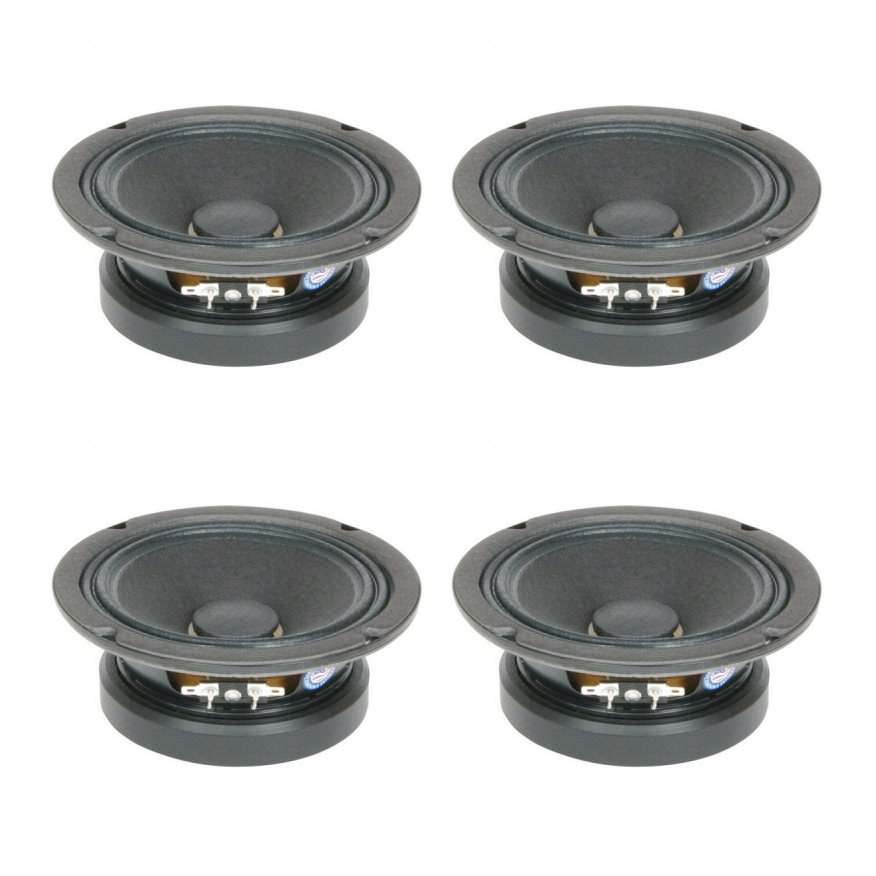

Eminence Alpha 6 6" Speaker 100 W 4 Ohm Four Pack
Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.
Specifications:
- Nominal Basket Diameter 6.5", 165 mm
- Nominal Impedance 4 ohms
- Power Rating Watts 100 W / Music Program 200 W
- Resonance 118 Hz
- Usable Frequency Range 85 Hz - 6 kHz
- Sensitivity 93.6
- Magnet Weight 20 oz.
- Gap Height 0.25", 6.35 mm
- Voice Coil Diameter 1.5", 38.1 mm
Thiele & Small Parameters
- Resonant Frequency (fs) 118 Hz
- DC Resistance (Re) 7.2
- Coil Inductance (Le) 0.19 mH
- Mechanical Q (Qms) 5.68
- Electromagnetic Q (Qes) 0.60
- Total Q (Qts) 0.54
- Compliance Equivalent Volume (Vas) 5.8 liters / 0.2 cu. ft.
- Peak Diaphragm Displacement Volume (Vd) 44cc
- Mechanical Compliance of Suspension (Cms) 0.26 mm/N
- BL Product (BL) 8.0 T-M
- Diaphragm Mass inc. Airload (Mms) 7 grams
- Efficiency Bandwidth Product (EBP) 197 Maximum Linear Excursion (Xmax) 3.5 mm
- Surface Area of Cone (Sd) 126.7 cm²
- Maximum Mechanical Limit (Xlim) 4.0 mm
Mounting Information:
- Recommended Enclosure Volume
- Sealed 2.8-5.7 liters / 0.1-0.2 cu. ft.
- Vented 3.4-15.6 liters / 0.12-0.55 cu. ft.
- Overall Diameter 6.59", 167.4 mm
- Baffle Hole Diameter 5.69", 144.5 mm
- Front Sealing Gasket fitted as standard
- Rear Sealing Gasket fitted as standard
- Mounting Holes Diameter 0.23", 5.7 mm
- Mounting Holes B.C.D. 6.06", 154 mm
- Depth 2.8", 71 mm
Materials of Construction:
- Copper voice coil
- Polyimide former
- Ferrite magnet
- Vented and extended core
- Pressed steel basket
- Paper Cone
- Cloth cone edge
- Solid composition paper dust cap
Eminence Alpha 6 6" Speaker 100 W 4 Ohm Twin Pack
Pack size: 2 units @ £91.88 incl VAT - Equivalent price: £45.94 incl VAT per item
OUT OF STOCK£91.88
£91.88
Eminence Alpha 6 6" Speaker 100 W 4 Ohm Four Pack
Pack size: 4 units @ £180.96 incl VAT - Equivalent price: £45.24 incl VAT per item
OUT OF STOCK£180.96
£180.96
| Other Eminence products similar to Eminence Alpha 6 6" Speaker 100 W 4 Ohm Four Pack: |
|
Seen this cheaper?
If you find 'Eminence Alpha 6 6" Speaker 100 W <span class="ohm_4">4 Ohm</span> Four Pack' at a lower price from an authorised UK dealer, tell us and we'll aim to match it. Request a price match. Terms & Conditions.
If you find 'Eminence Alpha 6 6" Speaker 100 W <span class="ohm_4">4 Ohm</span> Four Pack' at a lower price from an authorised UK dealer, tell us and we'll aim to match it. Request a price match. Terms & Conditions.
Eminence Alpha 6 6" Speaker 100 W 4 Ohm Four Pack is a package consisting of the following items:
 |
4 x Eminence Alpha 6C - 6" 100W 4 Ohm SPL: 93.3 1W/1m Fs: 107 Hz Xmax: 3.5mm |
