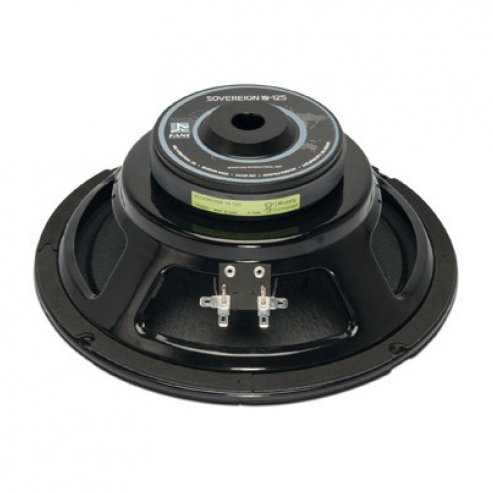

Fane Sovereign 10-125 - 10" 125W 8 Ohm
The Sovereign Series comprises fifteen cone drivers designed for a broad spectrum of sound reinforcement situations. Midrange, fullrange, bass-mid and dedicated bass applications are comprehensively covered. Featuring heavy duty pressed steel chassis providing rugged durability and consistant performace in even the most demanding of environments, glass fibre voice coils capable of delivering outstanding power handling capabilities and carefully selected cone materials for smooth tonal characteristics and extended bass response, the Sovereign represents an exciting and versitile answer to the demands of a varied and demanding range of audio applications.
- DISCONTINUED. Available for SPECIAL ORDER / OEM only.
- Medium-power driver suitable for use as a mid/bass driver in sealed boxes and in medium-sized vented boxes as a woofer.
- Ideal for bass guitar in vented designs.
- Optimised cone pulp offering increased strength, durability and performance.
ELECTRO ACOUSTIC SPECIFICATIONS
- Nominal Chassis Diameter 10" / 254 mm
- Impedance 8 Ω
- Power Handling 125 w (A.E.S.)
- Peak Power (6dB Crest Factor) 500 w (A.E.S.)
- Usable Frequency Range -6dB 50 Hz - 4 kHz
- Sensitivity (1 w - 1 m) 96 dB
- Moving Mass inc. Air Load 31 grams
- Minimum Impedance Zmin 7.6 Ω
- Effective Piston Diameter 214.88 mm / 8.46”
- Peak Displacement Volume of Cone Vd 0.183 litres
- Magnet Weight 20 oz
- Magnetic Gap Depth 5.84 mm / 0.23”
- Flux Density 1.0 Tesla
- Coil Winding Height 12.95 mm / 0.51”
- Voice Coil Diameter 38.1 mm / 1.5”
THIELE SMALL PARAMETERS
- FS 55 Hz
- RE 6.6 Ω
- Qms 6.29
- Qes 0.71
- Qts 0.65
- Vas 50 litres
- Vd 0.183 litres
- CMS 0.27 mm/N
- BL 10 T/m
- Mms 31 grams
- Xmax 5 mm
- Sd 363.5 cm2
- Efficiency 1.25%
- Le (1k Hz) 1.47 mH
MOUNTING / SHIPPING INFORMATION
- Overall Diameter 257.81 mm / 10.15”
- Flange Height 6.9 mm / 0.27”
- Baffle Hole Diameter F/M 233.93 mm / 9.21”
- Baffle Hole Diameter R/M 233.93 mm / 9.21”
- Gasket Supplied Front & Rear
- Fixing Holes 4x 6.5 mm on 246.88 mm PCD
- Depth 102.87 mm / 4.05”
- Weight 1.95 kg / 4.29 lb
- Recommended Enclosure Volume 25 - 50 litres
- Shipping Weight 2.5 kg
- Packing Carton Dimensions 150 x 280 x 280 mm
MATERIALS OF CONSTRUCTION
- Former Material Glass Fibre
- Voice Coil Copper
- Magnet Material Ferrite
- Chassis Pressed Steel
- Polarity Positive voltage at red terminal causes forward motion of cone
- Cone Paper
- Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
- Dust Dome Paper
- Connectors Solder Tag
