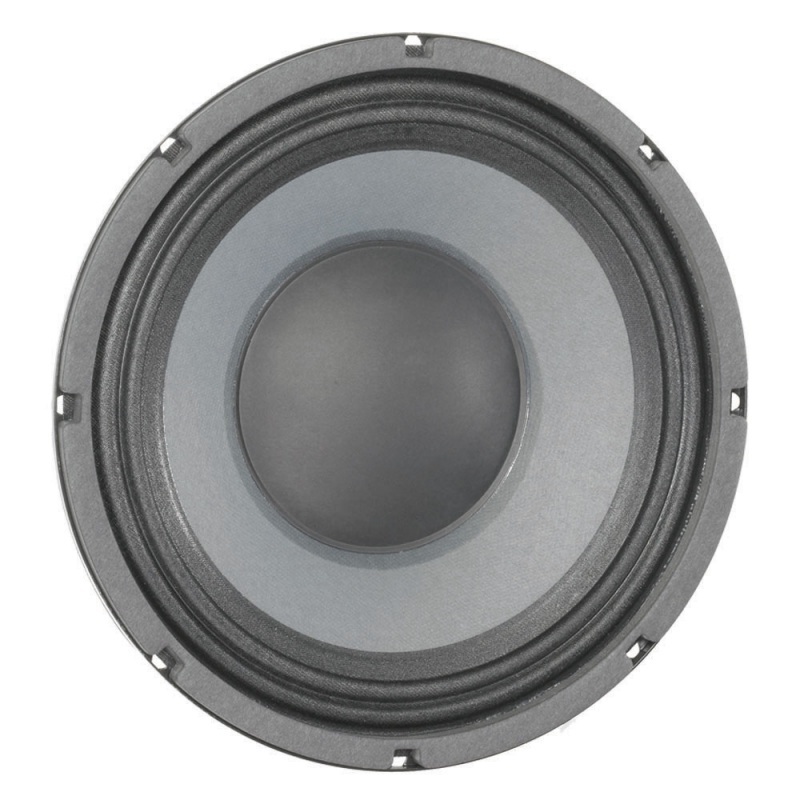

Eminence Delta 10 350W 8 Ohm 10 inch Speaker Driver
Product Code:   EMIDEL10A
Prices:
Qty   Price
1   £58.49
2-3   £57.76
4-7   £57.04
8+   £56.15
JAM Club: Login to see special offers and discounts
Not a member? Join Now
Brand: Eminence
Model:
Delta 10
Availability:
10 IN STOCK (same day despatch available weekdays until 3pm)
Delivery:
         (Mainland UK)

Qty:
Eminence Delta 10 350W 8 Ohm 10" Speaker Driver

10" 350W 8 Ohm Loudspeaker Driver from Eminence. Performance optimised for midrange in three way systems, and bass-mid in two way systems.

Specifications:

  • Nominal Basket Diameter 10", 254mm
  • Nominal Impedance 8 ohms
  • Power Rating: Watts RMS, 350W; Music Program 700W
  • Resonance 66Hz
  • Usable Frequency Range 63Hz - 3.7kHz
  • Sensitivity 98.8dB
  • Magnet Weight 56 oz.
  • Gap Height 0.37", 9.53mm
  • Voice Coil Diameter 2.5", 63.5mm


Thiele & Small Parameters:

  • Resonant Frequency (fs) 66Hz
  • DC Resistance (Re) 5.42
  • Coil Inductance (Le) 0.74mH
  • Mechanical Q (Qms) 6.53
  • Electromagnetic Q (Qes) 0.35
  • Total Q (Qts) 0.33
  • Compliance Equivalent Volume (Vas) 30.5 liters / 1.1 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 121cc
  • Mechanical Compliance of Suspension (Cms) 0.18mm/N
  • BL Product (BL) 14.4 T-M
  • Diaphragm Mass Inc. Airload (MMs) 32 grams
  • Efficiency Bandwidth Product (EBP) 189
  • Maximum Linear Excursion (Xmax) 3.5mm
  • Surface Area of Cone (Sd) 344.9 cm2
  • Maximum Mechanical Limit (Xlim) 9.4mm


Mounting Information:

  • Recommended Enclosure Volume, Sealed: N/a, Vented 12.7-37.9 liters / 0.45-1.34 cu.ft.
  • Driver Volume Displaced 86.5 cu.in. / 1.42 liters
  • Overall Diameter 10.09", 256.2mm
  • Baffle Hole Diameter 9.18", 233.17mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.25", 6.4mm
  • Mounting Holes B.C.D. 9.66", 245.4mm
  • Depth 4.25", 108mm
  • Net Weight 10.8 lbs, 4.9 kg
  • Shipping Weight 12 lbs, 5.4 kgs


Materials of Construction:

  • Coil Construction Aluminum voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dust Cap Composition Solid composition paper dust cap
