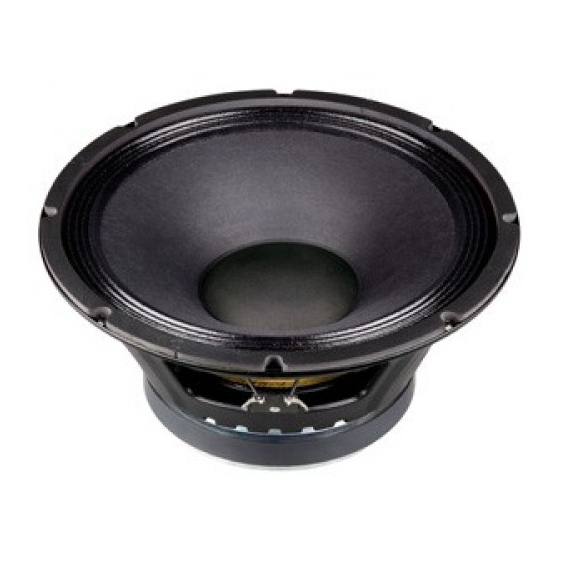

P-Audio E12-300S - 12" 300W 8 Ohm
The P Audio E12-300S is a high output low frequency transducer. The E12-300S is an upgraded design that features many of P Audio's new technologies and performance upgrades. The 12 inch (305mm) diameter piston will produce extremely high sound pressure levels at very low frequencies and is ideal for high level deep bass and sub woofer response in both live sound and recorded music venues. The operating bandwidth of the E12-300S is 50Hz to 3500Hz. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio.
The E12-300S employs a medium format 3 inch (76.2mm) diameter voice coil that provides an AES rated 300 watts of continuous power handling and a full 1200 watts of peak rated power handling when sufficient amplifier headroom is available. The E12-300S utilizes P Audio's under damper venting technology to improve transducer air flow and reduce turbulence under the damper and around the voice coil.
The voice coil design is a bobbin wound geometry with P Audio's precision round wire technology to maximize system conversion efficiency. The suspension has been designed specifically for high linear displacement and extended low frequency response. The transducer chassis is a heavy gauge stamped steel design that ensures a very high degree of structural integrity.
