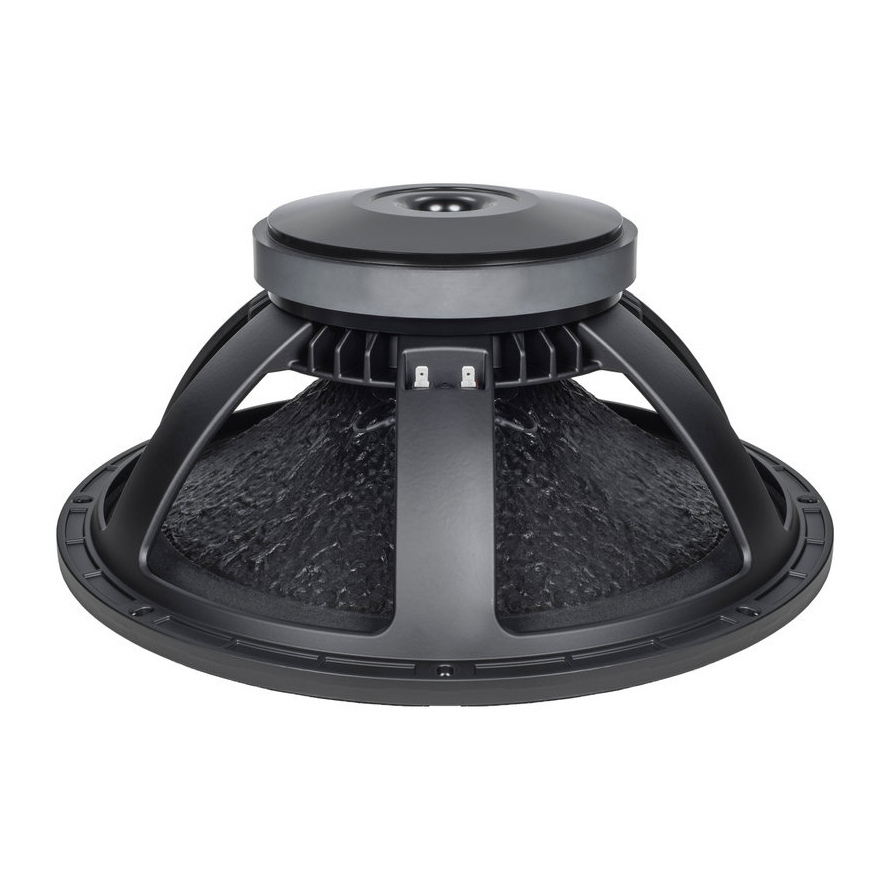

B&C 18PZW100 8 Ohm 18" 1000W Loudspeaker

B&C 18/126
Product Code: BAC18PZW100A Brand: B & C Model: 18PZW100
B&C 18PZW100 8 Ohm 18 inch 1000W Loudspeaker
£203.27
£203.27 ex VAT
Decrease Increase
Quantity Discounts
2-3£174.17 ea.
4-7£165.83 ea.
8+£157.50 ea.
Non Stock Item - Ordered on request
Ordered on Request
(approx 2 months)
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
B&C 18PZW100 8 Ohm 18" 1000W Loudspeaker

The 18PZW100 (also known as 18/126 in some regions) is a long Xmax, high power subwoofer that features a triple roll surround. This proven model features a 21 mm long, 4 inch diameter (100mm) Copper wire voice coil. A 1000watt AES power rating, 97.6 dB sensitivity, and over 10.5mm of Xvar make the 18PZW100 an interesting alternative.


  • 2000 W continuous program power capacity
  • 100 mm (4 in) copper voice coil
  • 37 - 2000 Hz response
  • 97.6 dB sensitivity
  • Double silicone spider with optimized compliance


This is NOT a stock item, we can usually order this in and have stock within 40-44 working days. If you require this item urgently, please contact a member of staff to confirm availability.

SPECIFICATIONS


  • Nominal Diameter 460 mm (18.0 in)
  • Nominal Impedance 8 Ω
  • Minimum Impedance 6.2 Ω
  • Nominal Power Handling 1000 W
  • Continuous Power Handling 2000 W
  • Sensitivity 97.6 dB
  • Frequency Range 37 - 2000 Hz
  • Voice Coil Diameter 100 mm (4.0 in)
  • Winding Material Copper
  • Former Material Glass Fibre
  • Winding Depth 21.0 mm (0.83 in)
  • Magnetic Gap Depth 11.0 mm (0.43 in)
  • Flux Density 1.0 T

DESIGN


  • Surround Shape Triple Roll
  • Cone Shape Exponential
  • Magnet Material Ferrite
  • Spider Double Silicone
  • Pole Design T-Pole
  • Woofer Cone Treatment TWP Waterproof Both Sides
  • Recommended Enclosure 150.0 dm3 (5.3 ft3)
  • Recommended Tuning 40 Hz

PARAMETERS


  • Resonance Frequency 37 Hz
  • Re 5.1 Ω
  • Qes 0.38
  • Qms 7.9
  • Qts 0.36
  • Vas 186.0 dm3 (6.57 ft3)
  • Sd 1210.0 cm2 (187.55 in2)
  • η₀ 2.32 %
  • Xmax ± 8.0 mm
  • Xvar ± 10.5 mm
  • Mms 209.0g
  • Bl 25.5 Txm
  • Le 1.58 mH
  • EBP 97Hz

MOUNTING AND SHIPPING INFO


  • Overall Diameter 460mm
  • Bolt Circle Diameter 440mm
  • Baffle Cutout Diameter 422mm
  • Depth 202mm
  • Flange and Gasket Thickness 16mm
  • Air Volume Occupied by Horn 9.5dm3
  • Net Weight 12.2kg
  • Shipping Units 1
  • Shipping Weight 13.8kg
  • Shipping Box 500x495x275 mm
