B & C :: B & C Loudspeaker Drivers :: B & C 15 Inch :: B & C 15CLA76
B & C

B&C 15CLA76 15" 8 Ohm 350W Loudspeaker Driver

Product Code: BAC15CLA76A Brand: B & C Model: 15CLA76
B&C 15CLA76 15 inch 8 Ohm 350W Loudspeaker Driver
£143.83
£143.83 ex VAT
Decrease Increase
Quantity Discounts
2-3£143.26 ea.
4-7£140.31 ea.
8+£137.35 ea.
Usually available in <br>4-6 weeks
Usually available in
4-6 weeks
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
B&C 15CLA76 15" 8 ohm 350W Loudspeaker Driver

Careful optimization of our lightest woofer series, now offered with a high temperature copper-clad aluminum voice coil, is rewarded with higher sensitivity and smoother high frequency response. An efficiently designed motor makes these a good fit for many more applications, especially where flown, and manufacturing design means the CLA series can be price competitive with ferrite motor designs offering similar performance.

  • 700 W continuous program power capacity
  • 76 mm (3 in) CCAW voice coil

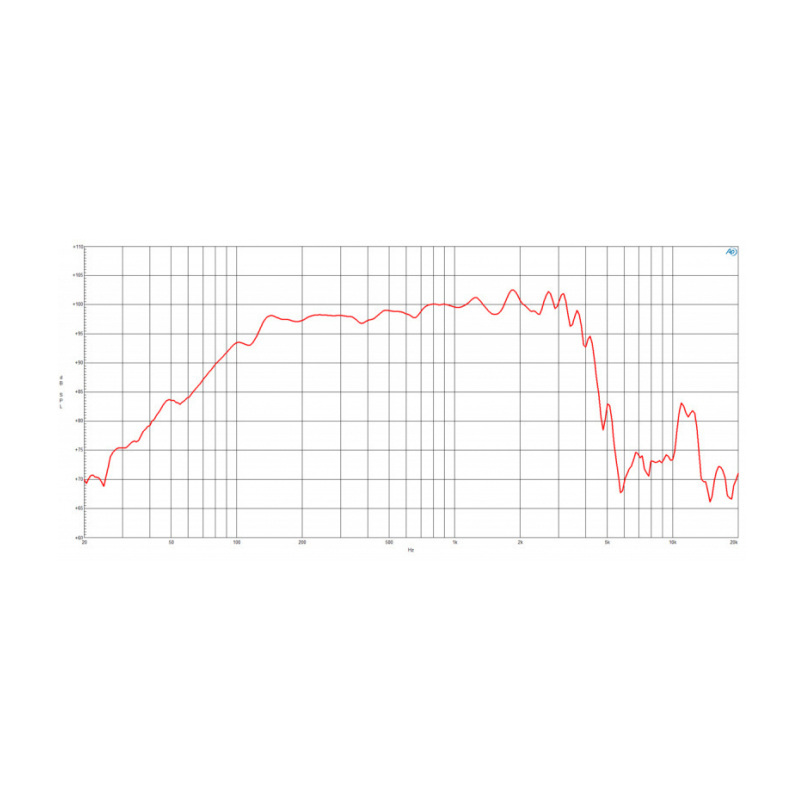

  • 40 - 3000 Hz response
  • 99 dB sensitivity
  • Ventilated voice coil gap for reduced power compression

Specifications


  • Nominal diameter 380 mm (15.0 in)
  • Nominal impedance 8 ohms
  • Minimum impedance 6.3 ohms
  • Nominal power handling 350 W
  • Continuous power handling 400 W
  • Sensitivity (1W/1m) 99 dB
  • Frequency range 40 - 3000 Hz
  • Voice coil diameter 76 mm (3.0 in)
  • Winding material CCAW
  • Former material Glass Fibre
  • Winding depth 11 mm (0.43 in)
  • Magnetic gap depth 16 mm (0.63 in)
  • Flux density 1.15 T

Design


  • Surround shape Triple Roll
  • Cone shape Exponential
  • Magnet material Neodymium Inside Slug
  • Spider Single
  • Pole design Straight Pole
  • Woofer cone treatment WP Waterproof Front Side
  • Recommended enclosure 100.0 dm3 (3.53 ft3)
  • Recommended tuning 50 Hz

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • Fs 40 Hz
  • Re 5.2 ohms
  • Qes 0.31
  • Qms 6.9
  • Qts 0.3
  • Vas 176.0 dm3 (6.22 ft3)
  • Sd 855.0 cm2 (132.5 in2)
  • η₀ 3.5 %
  • Xmax 5.5 mm
  • Xvar 7.5 mm
  • Mms 93 g
  • Bl 19.8 Txm
  • Le 0.5 mH
  • EBP 123 Hz

Mounting and Shipping Info


  • Overall diameter 388 mm (15.28 in)
  • Bolt circle diameter 374 mm (14.72 in)
  • Baffle cutout diameter 353.0 mm (13.9 in)
  • Depth 171 mm (6.73 in)
  • Flange and gasket thickness 10 mm (0.39 in)
  • Air volume occupied by driver 4.4 dm3 (0.15 ft3)
  • Net weight 3.2 kg (7.0 lb)
  • Shipping weight 3.9 kg (8.6 lb)
  • Shipping box 425 x 425 x 224mm
