8 Pack of Connector Dish with 2 x NL4MP Speakons and Terminal Block

Product Code: TUFF87182NA_8PK Brand: Tuff Cab Model: 87182NA_8PK

£83.33
£83.33 ex VAT

NONE IN STOCK - OUT OF STOCK

Sorry we dont have a delivery price for Country

Export prices without Sales Tax or VAT - additional customs fees may apply in your country

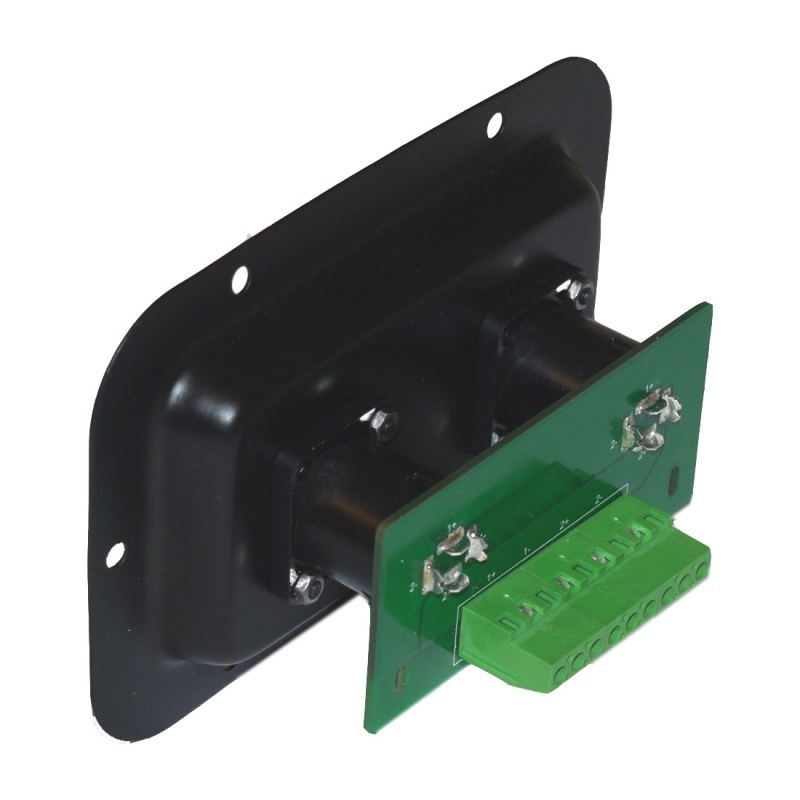

8 Pack of Connector Dish with 2 x NL4MP Speakons and Terminal Block

Tired of soldering wires to Speakons?

This handy pre-assembled Speakon connector plate comes ready to fit to your cabinet, to save you the time and inconvenience of soldering or crimping. It has 4 screw terminals which will accept wire of up to 2.5 mm sq CSA. The two speakon sockets are linked together for daisy chaining speaker cabinets

Overall dimensions of mounting panel: 136mm wide x 90mm high.

Cutout: 110mm x 65mm.

Depth of assembled connector panel: 55mm

Copper thickness: 2.8 mils (0.0711mm)
Average track width linking between pins: 12mm

The tracks between pins feature a high surface area, and over the short distance have a VERY low resistance calculated to be approximately 0.001 ohms (it's so small we can't physically measure it).

Current carrying capacity in excess of 25 amps.
