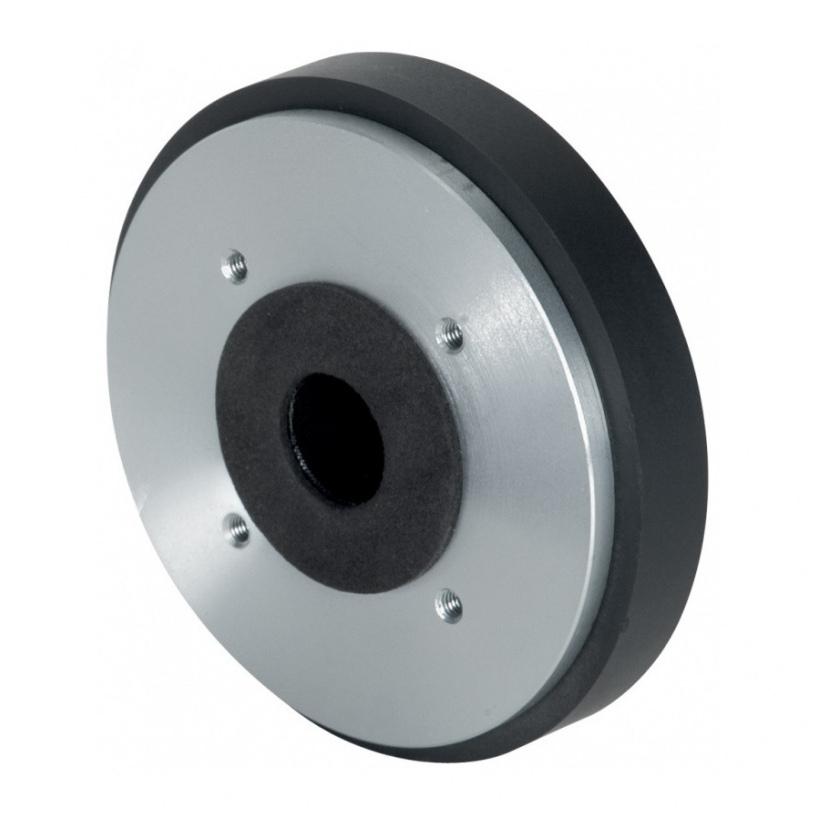

RCF CD400 50W AES 1" Bolt On Compression Driver 8 Ohm

Product Code: RCFCD400 Brand: RCF Model: CD400
RCF CD400 50W AES 1 inch Bolt On Compression Driver 8 Ohm
£67.49
£67.49 ex VAT
Decrease Increase
Quantity Discounts
2-3£66.48 ea.
4-7£65.80 ea.
8+£64.79 ea.
Usually available in <br>6-8 weeks
Usually available in
6-8 weeks
£8.46 DELIVERY to mainland UK.
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
RCF CD400 50W AES 1" Bolt On Compression Driver 8 Ohm

The CD400 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat.


The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives.


Features:


  • 1.75-inch Diaphragm, 1.0-inch Exit Throat / Polyester Compression Driver
  • 100W continuous program power handling
  • Frequency range: 1200Hz - 20kHz
  • 2-slot optimized geometry phase plug
  • Polyester diaphragm
  • Vented suspension system
  • Ceramic magnet assembly

General Specifications:


  • Exit Throat Diameter: 25.4 / 1.0 mm/inch
  • Rated Impedance: 8 Ω
  • Power handling capacity continuous program*: 100 W AES
  • Power handling capacity AES**: 50 W AES
  • Sensitivity: 109 dB
  • Frequency Range: 1200 Hz - 20000 Hz
  • Diaphragm Material: Polyester
  • Suspension Material: Polyester
  • Suspension Design: Flat
  • Minimum Impedance: (at 4.5kHz) 6.5 Ω
  • Voice Coil Diameter: 44.4 / 1.75 mm/inch
  • Voice Coil Material: Edgewound aluminium
  • Voice Coil Former Design: Straight kapton
  • Number of layers: 1 - outside
  • BL Factor: 7.5 T · m
  • Flux Density: 1.8 T
  • Phase Plug Design: 2 slots
  • Phase Plug Material: Composite
  • Magnetics: Ceramic
  • Voice Coil Demodulation: -

Mounting information:


  • Overall diameter: 134 / 5.3 mm/inch
  • Overall height: 52 / 2.0 mm/inch
  • Mounting 4 × 5 mm holes at 90°: 76.2 / 3.0 mm/inch
  • Net weight: 2.4 / 5.3 kg/lbs

Shipping information:


  • Shipping weight: 2.7 / 5.9 kg/lbs

* Continuous above 1.2 kHz
** AES above 1.0 kHz
