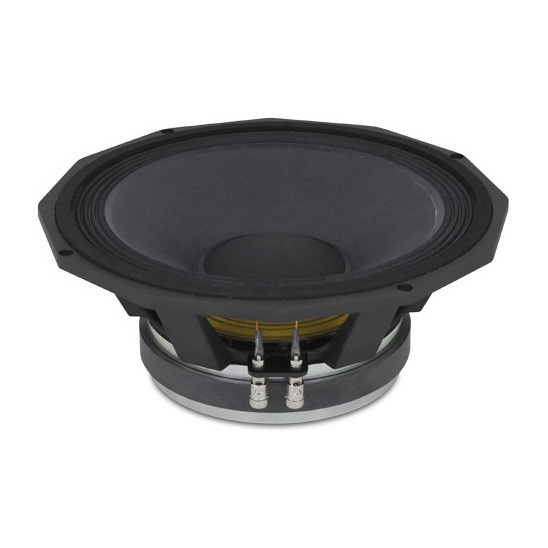

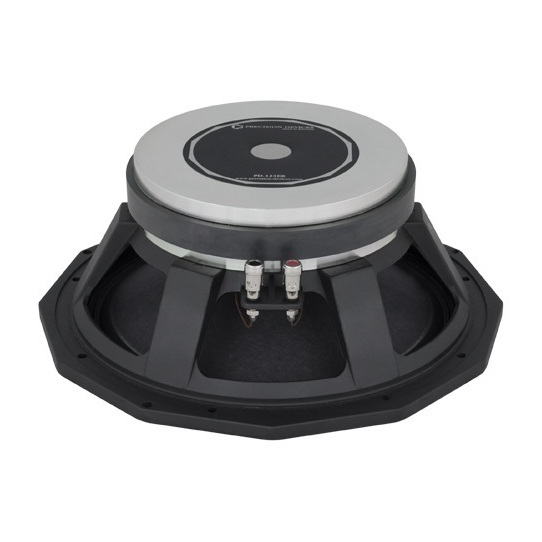

Precision Devices PD.123ER - 12" 400W 8 Ohm

SPL: 97.9dB Fs: 61Hz Xmax: 2.5mm
Product Code: PDIPD123ER8 Brand: Precision Devices Model: PD.123ER
Precision Devices PD.123ER - 12 inch 400W 8 Ohm

This product is not for sale
Archived product for reference

Precision Devices PD.123ER - 12" 400W 8 Ohm

Perfectly suited to either direct radiating or popular horn loaded mid/high applications, the extended frequency range makes this unit an excellent choice where a small format high frequency unit dictates a higher crossover point than would be achievable with other, more conventional, 12" transducers.

A very popular choice for stage wedges when a faster mid-range attack is required. Also suitable for vocal performances as the PD.123ER covers the critical vocal range in a single, highly effective unit. Suitable for direct radiating or popular horn loaded mid/high applications.


Specifications:

  • Nominal Diameter 30 cm (12”)
  • Voice Coil Diameter 76 mm (3.04”)
  • Nominal Impedance 8 or 16 Ohms
  • Power Rating 400 Watts (AES)

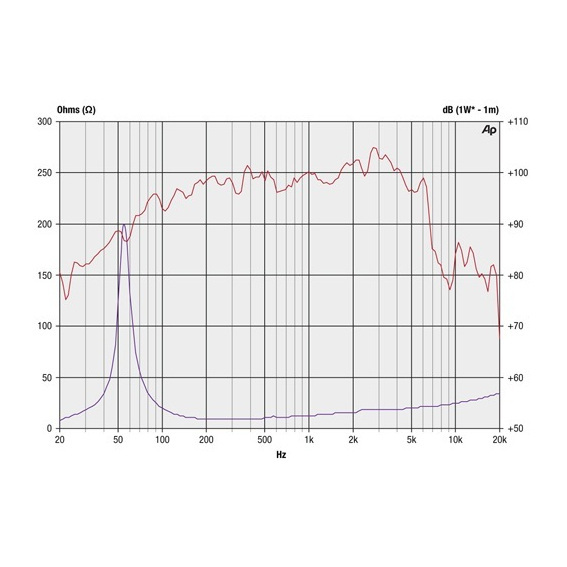

  • Sensitivity (1w / 1m) 97 dB
  • Frequency Range 50Hz to 5 kHz
  • Recommended Enclosure Volume 20-80 Litres
  • Displacement Limit (peak-peak) 13 mm (0.52”)
  • Resonance 55.87 Hz
  • Voice Coil Copper
  • Voice Coil Winding Depth 13 mm (0.52”)
  • Magnet Gap Depth 9 mm (0.36”)
  • Magnet Material Ceramic
  • Magnet Weight 2.5 Kg (90 oz.)
  • Flux Density 1.35 T
  • Dust Dome Material Paper
  • Suspension Material Fabric
  • Cone / Surround Material Paper


Thiele Small Parameters:

  • Fs 55.87 Hz
  • Re 6.74 Ohms
  • Qts 0.29
  • Qms 13.03
  • Qes 0.3
  • Vas 54.54 Litres
  • Mms 58.92 g
  • Sd 530.93 cm²
  • Cms 138 µm/N
  • BL 21.73 Tm
  • Xmax 2.5mm
  • Vd 1.32 x10-4 m3
  • Reference Efficiency 4.23 %


Mounting and Shipping Information


  • Overall Diameter 330 mm
  • Width Across Flats 320.5 mm
  • Flange Height 10 mm
  • Depth (Excl. Flange) 117 mm
  • Magnet Diameter 200 mm
  • Chassis Shoulder Diameter 282 mm
  • Outer Bolt Circle 6 * M6 on 318mm PCD
  • Inner Bolt Circle 8 * M6 on 293mm PCD
  • Nett Weight 9.5 Kg / 20.94 lb.
  • Shipping Weight 9.75 Kg / 21.49 lb.
