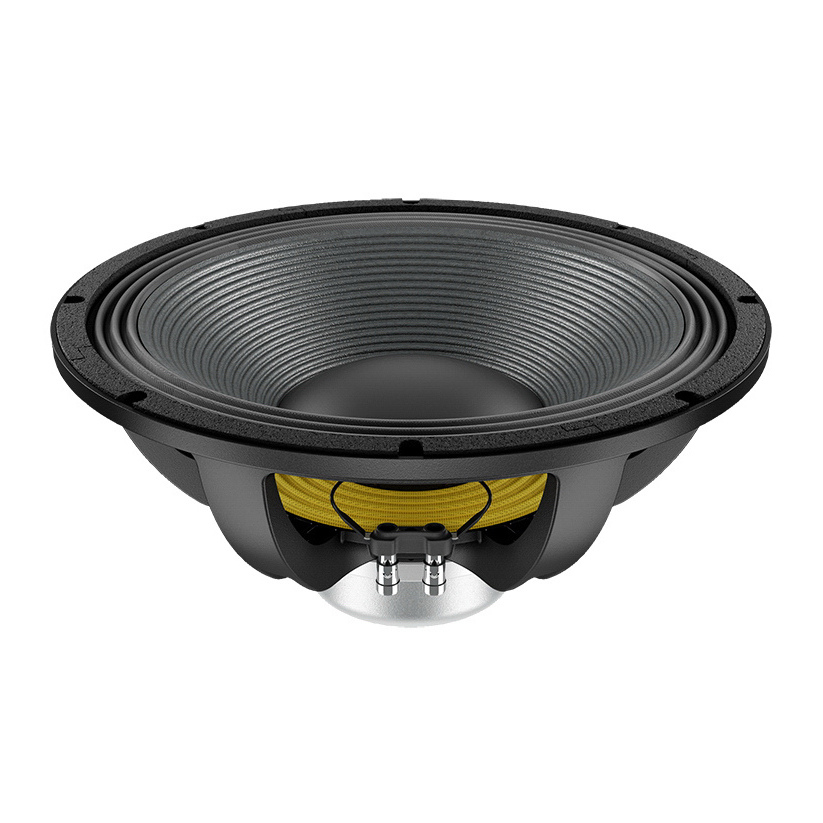

Lavoce WAN154.01 - 15" 1000W 8 Ohm Loudspeaker

SPL: 98.0dB Fs: 43Hz Xmax: 8.8mm Neodymium
Product Code: LAVWAN15401AF Brand: Lavoce Model: WAN154.01
Lavoce WAN154.01 - 15 inch 1000W 8 Ohm Loudspeaker
£212.80
£212.80 ex VAT
Decrease Increase
Usually available in <br>3-5 months
Usually available in
3-5 months
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
Lavoce WAN154.01 - 15" 1000W 8 Ohm Loudspeaker

Key features




- 4 INCH COPPER VOICE COIL
- 98 dB/SPL SENSITIVITY

- 2000 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- DOUBLE SILICON SPIDER

- ALUMINIUM DEMODULATING RING

- TRIPLE ROLL SURROUND

Technical specifications


  • Nominal Diameter: 380 mm (15in)
  • Impedance: 8 Ohm
  • Minimum Impedance: 6.3 Ohm
  • AES Power: 1000 W
  • Program Power: 2000 W
  • Sensitivity: 98 dB
  • Frequency Range: 45 - 1000 Hz
  • Voice Coil Material: Copper
  • Voice Coil Former: Glass Fiber
  • Voice Coil Depth: 24.5 mm (0.96in)
  • Magnetic Gap Depth: 14 mm (0.55in)
  • Cone Material: Water Resistant Treated Paper + Water Proof Front Side Treatment
  • Surround Material: Polycotton
  • Chassis Material: Aluminium
  • Magnet Material: Neodymium
  • Magnet Dims: 97 x 31 x 9 mm
  • Driver Displacement Volume: 4.4 l (0.16ft3)
  • Recommended Enclosure: 136.1 l (4.81ft3)
  • Recommended Tuning: 48 Hz

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • DC Resistance (Re) - 5.1 Ohm
  • Resonance (Fs) - 43 Hz
  • Moving Mass - System (Mms) - 154.8 g
  • Compliance (Cms) - 0.086 mm/N
  • Force Factor (BL) - 25.37 Tm
  • Mechanical Q (Qms) - 7.27
  • Electrical Q (Qes) - 0.34
  • Total Q (Qts) - 0.32
  • Compliance Equivalent Volume (Vas) - 106.7 L
  • Voice Coil Inductance (Le) - 1.69 mH
  • Diaphragm Area (Sd) - 934.8 cm2
  • Reference Efficiency (Eta Zero) - 2.52 % %
  • Efficiency Bandwidth Product (EBP) - 126
  • Maximum Linear Excursion (Xmax) - 8.8 mm
  • Maximum Mechanical Excursion (Xmech) - 17.3 mm

Shipping Information


  • Net weight: 8.2 kg (18lb)
  • Multipack size (WxDxH): 438 x 438 x 230 mm (17.2 x 17.2 x 9in)
  • Multipack weight: 10.4 kg (22.8lb)
