This is a new product, which is not yet available. Preliminary information for reference only. Specifications may change. | ||

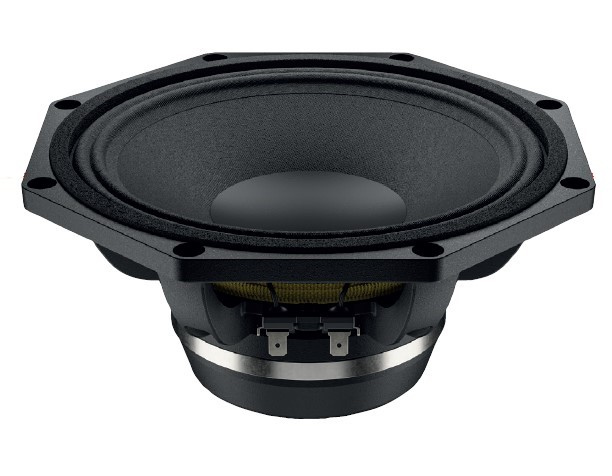

Lavoce WAN082.02 8" Speaker Driver 200W 8 Ohm
Key features
2 inch ccaw voice coil
96,5 db/spl sensitivity
400 w program power handling
Fem optimized motor and suspensions
Optimized cooling system
Copper ring for extended frequency response
Technical specifications
- Nominal Diameter: 200 mm (8 in)
- Impedance: 8 Ohm
- Minimum Impedance: 7 Ohm
- AES Power: 200 W
- Program Power: 400 W
- Sensitivity: 96.5 dB
- Frequency Range: 80 - 5000 Hz
- Voice Coil Diameter: 51 mm (2 in)
- Voice Coil Material: Copper
- Voice Coil Former: Glass Fiber
- Voice Coil Depth: 16.6 mm (0.65 in)
- Magnetic Gap Depth: 10 mm (0.39 in)
- Cone Material: Water Resistant Treated Paper + Water Proof Front Side Treatment
- Surround Material: Polycotton
- Chassis Material: Aluminium
- Magnet Material: Neodymium
- Magnet Dims: 110 x 70 x 8 mm
- Driver Displacement Volume: 0.65 l (0.02 ft3)
- Recommended Enclosure: 7.8 l (0.27 ft3)
- Recommended Tuning: 97 Hz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Maximum Linear Excursion (Xmax) - 5.8 mm
- Maximum Mechanical Excursion (Xmech) - 11.3 mm
Shipping Information
- Net weight: 2.7 kg (5.9lb)
- Multipack size (WxDxH): 235 x 235 x 144 mm (9.2 x 9.2 x 5.7in)
- Multipack weight: 3.1 kg (6.8lb)
