Lavoce :: Lavoce Bass Guitar :: Lavoce 15" Bass Guitar :: Lavoce FBASS15-20
Lavoce

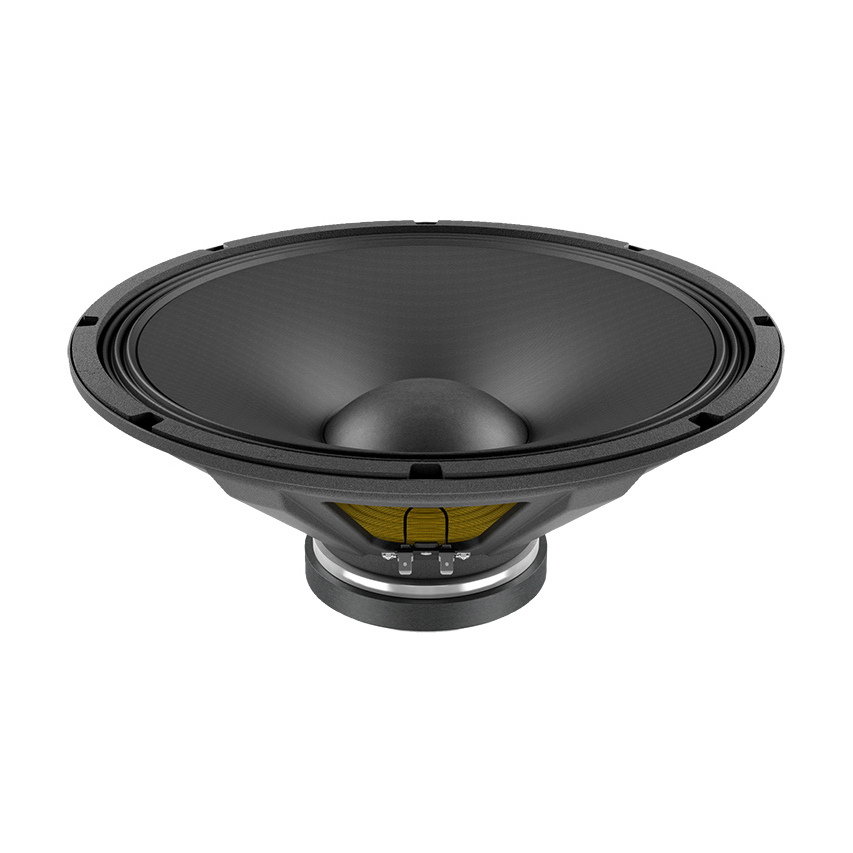

Lavoce FBASS15-20 15" Speaker Driver 200W 8 Ohm

Product Code: LAVFBASS15-20AF Brand: Lavoce Model: FBASS15-20
Lavoce FBASS15-20 15 inch Speaker Driver 200W 8 Ohm
£64.89
£64.89 ex VAT
Decrease Increase
Usually available in <br>3-5 months
Usually available in
3-5 months
Sorry we dont have a delivery price for Country
Export prices without Sales Tax or VAT - additional customs fees may apply in your country
Lavoce FBASS15-20 15" Speaker Driver 200W 8 Ohm

Key features




- 2 INCH COPPER VOICE COIL
- 98 dB/SPL SENSITIVITY
- 400 WATT PROGRAM POWER HANDLING
- TRIPLE ROLL SURROUND
- OVERALL BALANCED AND RICH TONE
- SOLID LOW-END AND TIGHT MID-HIGH’S

Technical specifications


  • Nominal Diameter: 380 mm (15in)
  • Impedance: 8 Ohm
  • Minimum Impedance: 5.9 Ohm
  • AES Power: 200 W
  • Program Power: 400 W
  • Sensitivity: 98 dB
  • Frequency Range: 40 - 4000 Hz
  • Voice Coil Material: Copper
  • Voice Coil Former: Glass fiber
  • Voice Coil Depth: 12.6 mm (0.5in)
  • Magnetic Gap Depth: 8.2 mm (0.32in)
  • Cone Material: Water Proof Treated Paper
  • Surround Material: Polycotton
  • Chassis Material: Steel
  • Magnet Material: Ferrite
  • Magnet Dims: 140 x 60 x 17 mm
  • Driver Displacement Volume: 3 l (0.1ft3)

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • DC Resistance (Re) - 5.3 Ohm
  • Resonance (Fs) - 40 Hz
  • Moving Mass - System (Mms) - 70 g
  • Compliance (Cms) - 0.23 mm/N
  • Force Factor (BL) - 12.8 Tm
  • Mechanical Q (Qms) - 8.7
  • Electrical Q (Qes) - 0.56
  • Total Q (Qts) - 0.53
  • Compliance Equivalent Volume (Vas) - 234 L
  • Voice Coil Inductance (Le) - 0.70 mH
  • Diaphragm Area (Sd) - 855 cm2
  • Reference Efficiency (Eta Zero) - 2.5% %
  • Maximum Linear Excursion (Xmax) - 4.3 mm
  • Maximum Mechanical Excursion (Xmech) - 8.4 mm

Shipping Information


  • Net weight: 4.1 kg (9.1lb)
  • Multipack size (WxDxH): 438 x 438 x 204 mm (17.2 x 17.2 x 8in)
  • Multipack weight: 6.2 kg (13.6lb)
