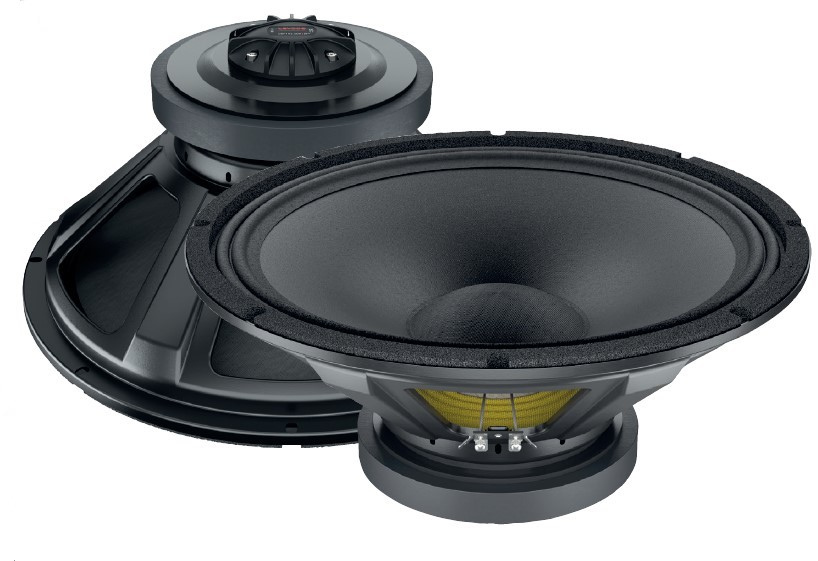

Lavoce CSF153.00K " Speaker Driver 60W 8 Ohm
Key features
3 inch lf edgewound copper voice coil
1.7 inch hf edgewound cca voice coil
98 db/spl sensitivity
700 watt program power handling
Fem optimized common motor,
patented iis phaseplug and diaphragm
50 20000 hz frequency range
80° nominal coverage
Polyimide hf diaphragm
Double aluminium demodulating rings
Compact and lightweight design
Technical specifications
- Nominal Diameter: 380 mm (15 in.)
- Impedance: 8 Ohm
- Minimum Impedance: 7.6 Ohm
- AES Power: 60 W
- Program Power: 120 W
- Sensitivity: 108 dB
- Frequency Range: 1000 - 20000 Hz
- Voice Coil Diameter: 44.4 mm (1.7 in.)
- Voice Coil Material: Edgewound CCA
- Voice Coil Former: Kapton
- Voice Coil Depth: - mm (0.73 in.)
- Magnetic Gap Depth: - mm (0.31 in.)
- Surround Material: Polyimide
- Chassis Material: Steel
- Magnet Material: Ferrite
- Magnet Dims: 185 x 85 x 22 mm
- Flux Density: 1.7 T
- Driver Displacement Volume: - l (0.14 ft3)
- Recommended Crossover: 1600 Hz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Maximum Linear Excursion (Xmax) - - mm
- Maximum Mechanical Excursion (Xmech) - - mm
Shipping Information
- Net weight: 6.4 kg (14.1lb.)
- Multipack size (1) W x D x H: 422 x 422 x 245 mm (16.6 x 16.6 x 9.6in.)
- Multipack weight: 7.8 kg (17.2lb.)
