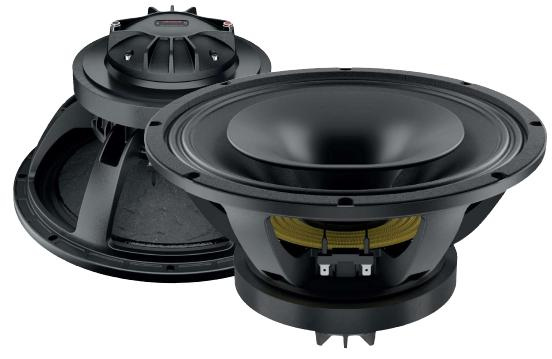

Lavoce CAF123.00TH inch Speaker Driver 80W 8 Ohm
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Lavoce
Lavoce CAF123.00TH " Speaker Driver 80W 8 Ohm


Product Code: LAVCAF12300THAF | Brand: Lavoce
Lavoce CAF123.00TH inch Speaker Driver 80W 8 Ohm

This is a new product, which is not yet available.
Preliminary information for reference only.
Specifications may change.
Lavoce CAF123.00TH " Speaker Driver 80W 8 Ohm

Key features


3 INCH LF COPPER VOICE COIL
3 INCH HF EDGEWOUND CCA VOICE COIL
98 dB/SPL SENSITIVITY
700 WATT PROGRAM POWER HANDLING
FEM OPTIMIZED COMMON MOTOR,
PATENTED IIS PHASEPLUG AND DIAPHRAGM
50 - 18000 Hz FREQUENCY RANGE
60°x40° NOMINAL COVERAGE
COMPOSITE TITANIUM/POLYIMIDE HF DIAPHRAGM
ALUMINIUM DEMODULATING RING
COMPACT DESIGN

Technical specifications


  • Nominal Diameter: 300 mm (12 in.)
  • Impedance: 8 Ohm
  • Minimum Impedance: 8 Ohm
  • AES Power: 80 W
  • Program Power: 160 W
  • Sensitivity: 105.5 dB
  • Frequency Range: 600 - 18000 Hz
  • Voice Coil Diameter: 75 mm (3 in.)
  • Voice Coil Material: Edgewound CCA
  • Voice Coil Former: Kapton
  • Voice Coil Depth: - mm (0.63 in.)
  • Magnetic Gap Depth: - mm (0.31 in.)
  • Surround Material: Polyimide
  • Chassis Material: Aluminium
  • Magnet Material: Ferrite
  • Magnet Dims: 190 x 85 x 22 mm
  • Flux Density: 1.6 T
  • Driver Displacement Volume: - l (0.11 ft3)
  • Recommended Crossover: 1200 Hz

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.


  • Maximum Linear Excursion (Xmax) - - mm
  • Maximum Mechanical Excursion (Xmech) - - mm

Shipping Information


  • Net weight: 7.1 kg (15.6lb.)
  • Multipack size (1) W x D x H: 343 x 343 x 225 mm (13.5 x 13.5 x 8.8in.)
  • Multipack weight: 8.2 kg (18.1lb.)
