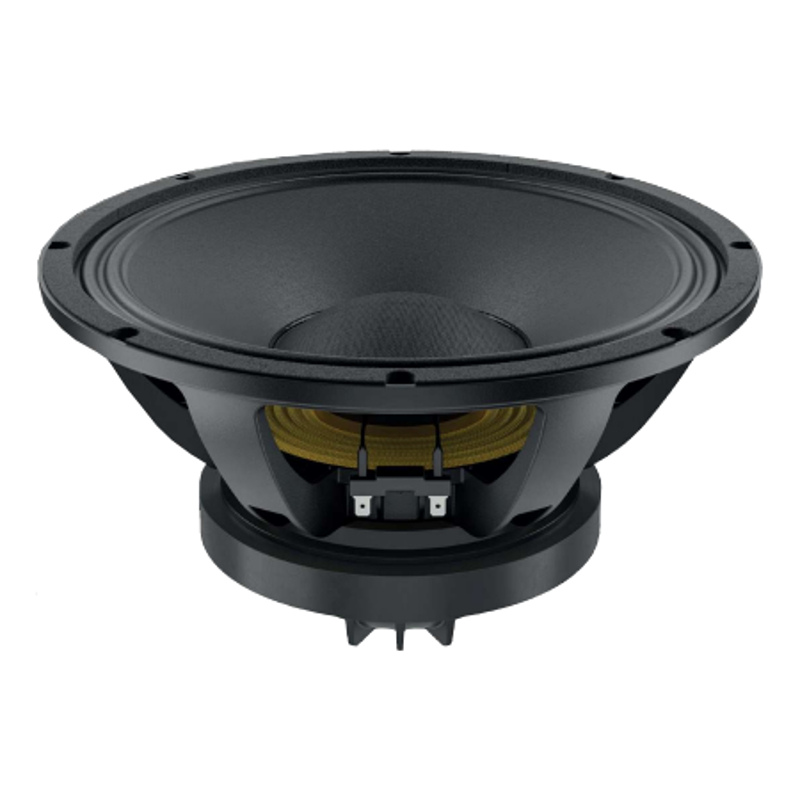

Lavoce CAF123.00T 12" Speaker Driver 80W 8 Ohm
Key features
3 INCH LF COPPER VOICE COIL
3 INCH HF EDGEWOUND CCA VOICE COIL
98 dB/SPL SENSITIVITY
700 WATT PROGRAM POWER HANDLING
FEM OPTIMIZED COMMON MOTOR,
PATENTED IIS PHASEPLUG AND DIAPHRAGM
50 - 18000 HZ FREQUENCY RANGE
80° NOMINAL COVERAGE
COMPOSITE TITANIUM/POLYIMIDE HF DIAPHRAGM
ALUMINIUM DEMODULATING RING
COMPACT DESIGN
Technical specifications
- Nominal Diameter: 300 mm (12 in.)
- Impedance: 8 Ohm
- Minimum Impedance: 8 Ohm
- AES Power: 80 W
- Program Power: 160 W
- Sensitivity: 105.5 dB
- Frequency Range: 600 - 18000 Hz
- Voice Coil Diameter: 75 mm (3 in.)
- Voice Coil Material: Edgewound CCA
- Voice Coil Former: Kapton
- Voice Coil Depth: - mm (0.63 in.)
- Magnetic Gap Depth: - mm (0.31 in.)
- Surround Material: Polyimide
- Chassis Material: Aluminium
- Magnet Material: Ferrite
- Magnet Dims: 190 x 85 x 22 mm
- Flux Density: 1.6 T
- Driver Displacement Volume: - l (0.11 ft3)
- Recommended Crossover: 1200 Hz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Maximum Linear Excursion (Xmax) - - mm
- Maximum Mechanical Excursion (Xmech) - - mm
Shipping Information
- Net weight: 7 kg (15.4lb.)
- Multipack size (1) W x D x H: 343 x 343 x 225 mm (13.5 x 13.5 x 8.8in.)
- Multipack weight: 8.1 kg (17.8lb.)
