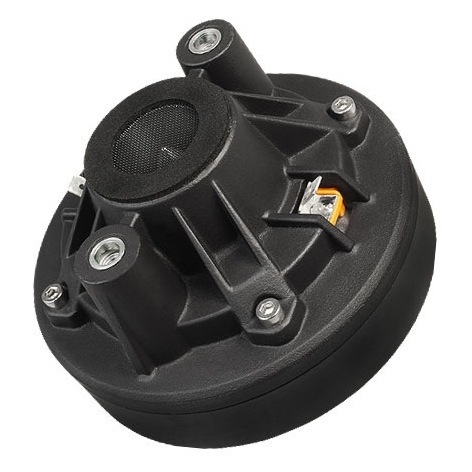

Faital Pro HF107 1" Compression Driver 70 W 16 Ohm
Nominal Specifications
- Throat Diameter - 25.4 mm (1 in)
- Overall Diameter - 121 mm (4.76 in)
- 180° Mounting Holes Diameter (2xM6) - 76 mm (2.99 in)
- Depth - 75.4 mm (2.97 in)
- Net Weight - 2.5 Kg (5.5 lb)
- Shipping Box - 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
- Shipping Weight - 2.7 Kg (5.8 lb)
Technical specifications
- Throat Diameter: 25.4 Inches (1 in)
- Exit Angle: Combined °
- Overall Diameter: 121 mm (4.76 in)
- Mounting Holes Diameter: 76 mm (180° 2xM6)
- Overall Depth: 75.4 mm (2.97 in)
- Impedance: 8 ohm
- Minimum Impedance: 6.8 ohm
- AES Power: 70 W
- Program Power: 140 W
- DC Resistance: 5.4 ohm
- Sensitivity: 109 dB
- Frequency Range: 1.3:20 kHz
- Voice Coil Diameter: 44 mm (1.73 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 2.3 mm (0.09 in)
- Magnetic Gap Depth: 2.6 mm (0.10 in)
- Diaphragm Material: Ketone
- Diaphragm Shape: Annular
- Phase Plug Design: Annular
- Magnet Material: Ferrite Ring
- Flux Density: 1.9 T
- Driver Displacement Volume: 0.5 L (0.018 ft^3)
- Minimum Crossover Frequency: 1.3 kHz
Shipping Information
- Net Weight: 2.5 kg (5.5 lb)
- Shipping Weight: 2.7 kg (5.8 lb)
- Shipping Box: 185 x 170 x 122 mm
