Faital PRO 10PR330 16 Ohm

Technical specifications

• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 230 mm (9.06 in)
• Overall Depth: 111 mm (4.37 in)
• Flange/Gasket Thickness: 12 mm (0.47 in)
• Impedance: 16 ohm

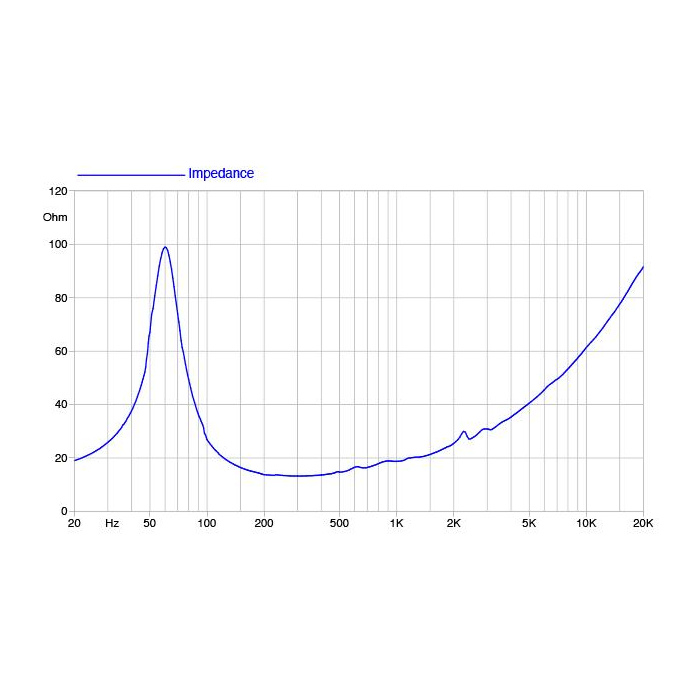

• Minimum Impedance: 13.4 ohm
• AES Power: 300 W
• Program Power: 600 W
• Sensitivity: 95 dB
• Frequency Range: 60:3150 kHz
• Voice Coil Diameter: 65 mm (2.56 in)
• Voice Coil Material: Al
• Voice Coil Former: Glass Fiber
• Voice Coil Depth: 17.2 mm (0.68 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Surround Type: M-Roll
• Spider Profile: 1x variable height waves
• Chassis Material: Aluminum
• Magnet Material: Ferrite Ring
• Demodulating Ring: No
• Flux Density: 1.2 T
• Driver Displacement Volume: 1.3 L (0.046 ft^3)

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.

• Resonance (Fs) - 60 Hz
• DC Resistance (Re) - 11.3 Ohm
• Electrical Q (Qes) - 0.4
• Mechanical Q (Qms) - 3.6
• Total Q (Qts) - 0.36
• Compliance Equivalent Volume (Vas) - 32.9 L
• Diaphragm Area (Sd) - 348 cm²
• Maximum Linear Excursion (Xmax) - 7.27 mm
• Maximum Mechanical Excursion (Xdamage) - 15.25 mm
• Moving Mass - System (Mms) - 36.1 g
• Force Factor (BL) - 19.5 Tm
• Voice Coil Inductance (Le) - 1.12 mH
• Moving Mass - Diaphragm (Mmd) - 28.8 g
• Compliance (Cms) - 0.19 mm/N
• Mechanical Resistance (Rms) - 3.8 Kg/s
• Reference Efficiency (Eta Zero) - 1.70 %
• Efficiency Bandwidth Product (EBP) - 150

Shipping Information

• Net Weight: 4.1 kg (9.0 lb)
• Shipping Weight: 4.7 kg (10.4 lb)
• Shipping Box: 282 x 280 x 140 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
