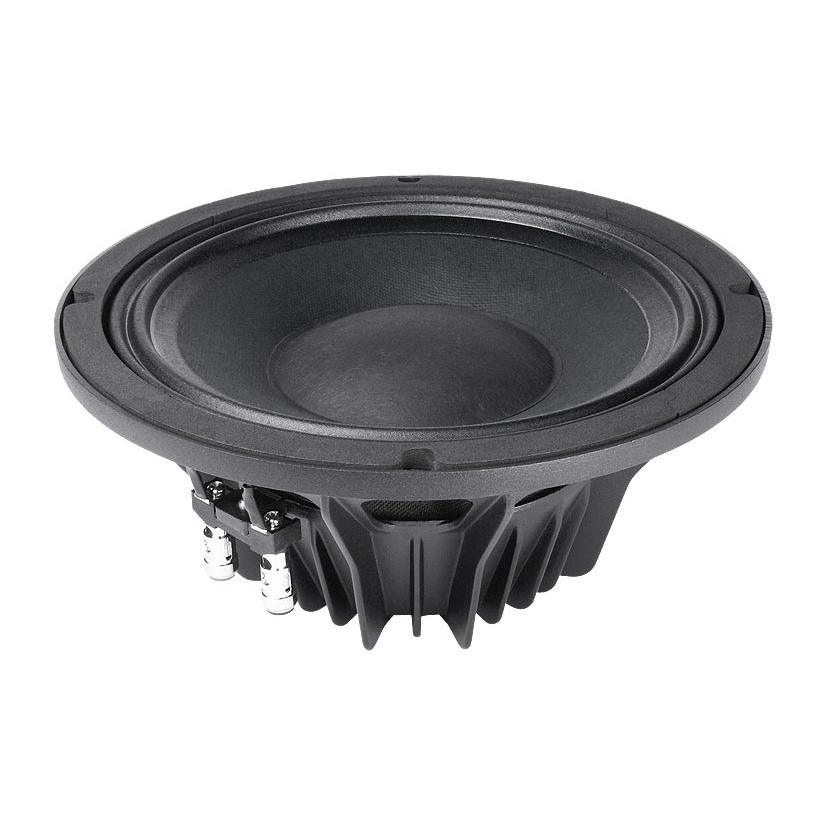

Faital Pro 10PR300 - 10" 300W 4 Ohm Loudspeaker

Technical specifications

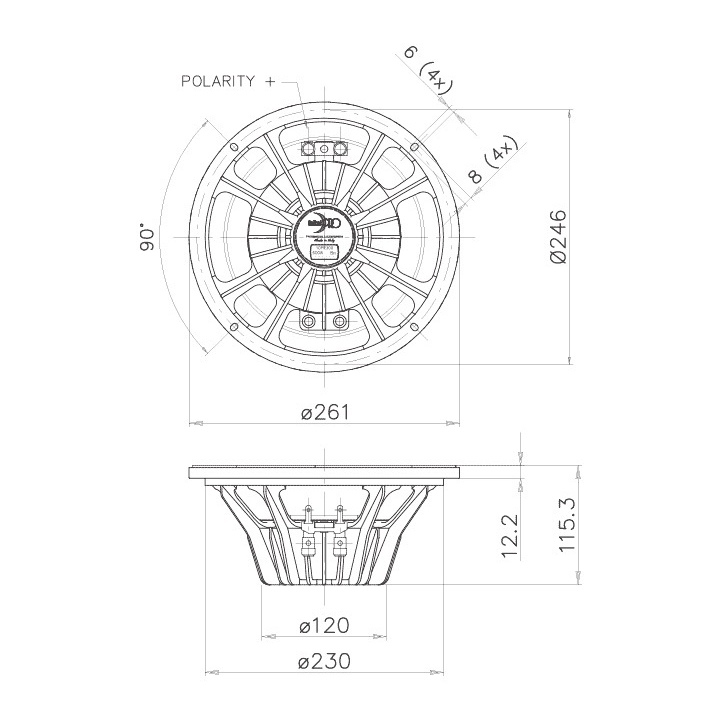

• Nominal Diameter: 250 mm (10 in)
• Overall Diameter: 261 mm (10.28 in)
• Bolt Circle Diameter: 246 mm (9.69 in)
• Baffle Cutout Diameter: 232 mm (9.13 in)
• Overall Depth: 115.3 mm (4.54 in)
• Flange/Gasket Thickness: 12.2 mm (0.48 in)

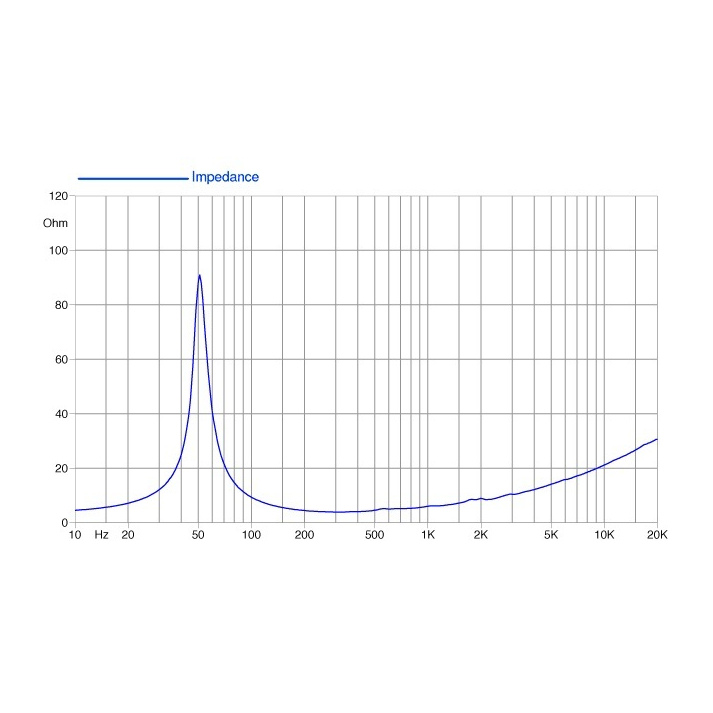

• Impedance: 4 ohm
• Minimum Impedance: 3.9 ohm
• AES Power: 300 W
• Program Power: 600 W
• Sensitivity: 96 dB

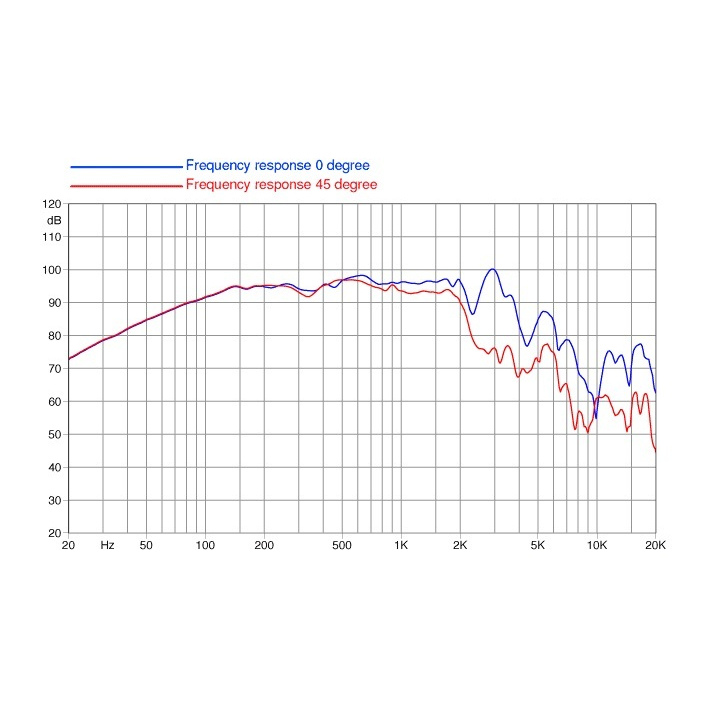

• Frequency Range: 50:4000 kHz
• Voice Coil Diameter: 65 mm (2.56 in)
• Voice Coil Material: Al
• Voice Coil Former: Glass Fiber
• Voice Coil Depth: 12.5 mm (0.49 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Surround Type: M-Roll
• Spider Profile: 1x variable height waves
• Chassis Material: Aluminum
• Magnet Material: Neodymium Slug
• Demodulating Ring: No
• Flux Density: 1.25 T
• Driver Displacement Volume: 1.3 L (0.046 ft^3)

Thiele and Small parameters:  Need some help? Read our quick guide to TS Params.

• Resonance (Fs) - 50 Hz
• DC Resistance (Re) - 3.3 Ohm
• Electrical Q (Qes) - 0.25
• Mechanical Q (Qms) - 5.8
• Total Q (Qts) - 0.24
• Compliance Equivalent Volume (Vas) - 49.8 L
• Diaphragm Area (Sd) - 348 cm²
• Maximum Linear Excursion (Xmax) - 4.92 mm
• Maximum Mechanical Excursion (Xdamage) - 14 mm
• Moving Mass - System (Mms) - 34.4 g
• Force Factor (BL) - 11.8 Tm
• Voice Coil Inductance (Le) - 0.45 mH
• Moving Mass - Diaphragm (Mmd) - 27.1 g
• Compliance (Cms) - 0.29 mm/N
• Mechanical Resistance (Rms) - 1.9 Kg/s
• Reference Efficiency (Eta Zero) - 2.36 %
• Efficiency Bandwidth Product (EBP) - 200

Shipping Information

• Net Weight: 2.3 kg (5.1 lb)
• Shipping Weight: 2.8 kg (6.2 lb)
• Shipping Box: 294 x 290 x 203 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
