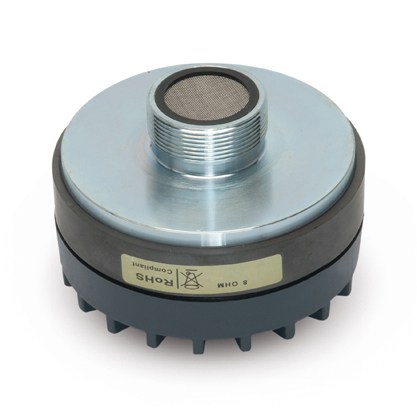

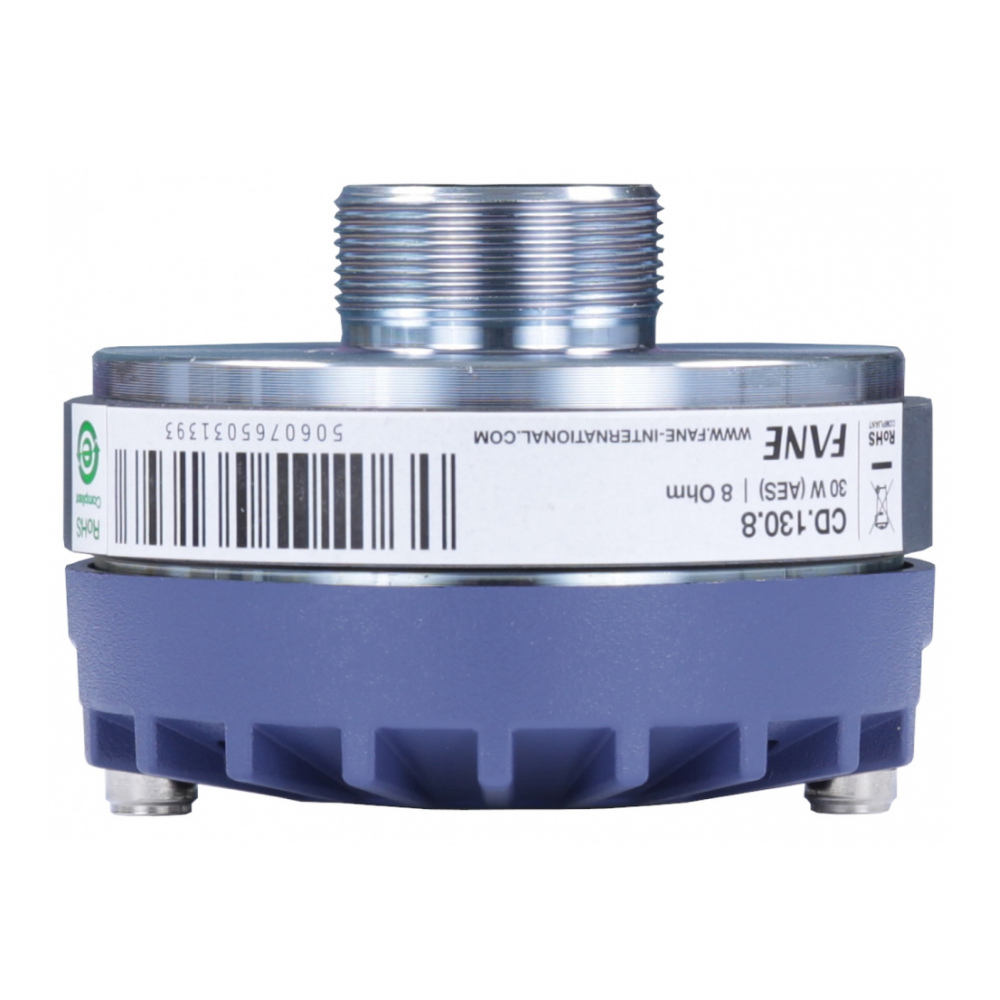

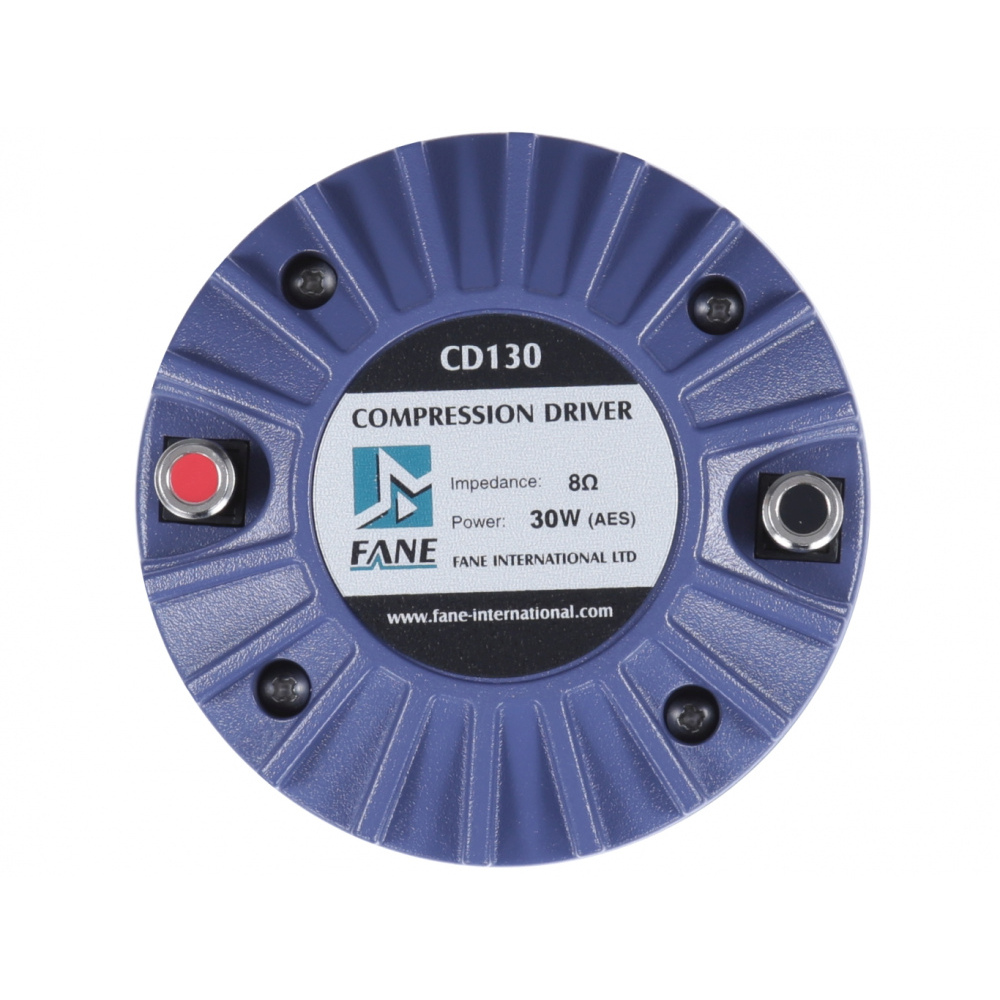

Fane CD.130 (CD130) 30W 1" Compression Driver
The CD130 is a 1 inch (25.4mm) small format diaphragm compression driver. The 1 inch (25.4mm) exit is an industry standard. The CD-130 combines high BL and a very lightweight diaphragm assembly, producing high output that offers extended bandwidth and well defined frequency response to 18 kHz. The driver has a rated low frequency response limit of 2 kHz and has a smooth response throughout its bandwidth. The CD130 features an industry standard screw fit mounting system that is ideally matched to commercially available female screw thread horns.
- 1" Industry standard Exit.
- 1.375" / 34.4 mm Aluminium voice coil.
- Titanium diaphragm.
- 30 W (AES)
- Screw fit mounting.
- ELECTRO ACOUSTIC SPECIFICATIONS
- Sound Channel / Throat Size 1" / 25.4 mm
- Rated Impedance 8 Ohms
- DC Resistance 6.43 Ohms
- Minimum Impedence 7.5 @ 3 kHz
- Le (@ 1kHz) 0.01 mH
- A.E.S Power handling 30W
- Continuous Pink Noise 40 w (above 2 kHz)
- Continuous Program 80 w (above 2 kHz)
- Sensitivity (1 W / 1 m) 106 dB
- Frequency Range 2 kHz - 18 kHz
- Recommended Crossover Frequency above 2 kHz
- Voice Coil Diameter 1.375' / 34.4 mm
- Flux Density 1.25 Tesla
- BL Factor 3.39 Tesla
- MOUNTING / SHIPPING INFORMATION
- Overall Diameter 3.54" / 90 mm
- Depth 1.73" / 44 mm
- Weight 2 lb / 0.91 kg
- Shipping Weight 2.16 lb / 0.98 kg
- Packing Carton Dimensions 95 x 95 x 71 mm
- Screw Fit
