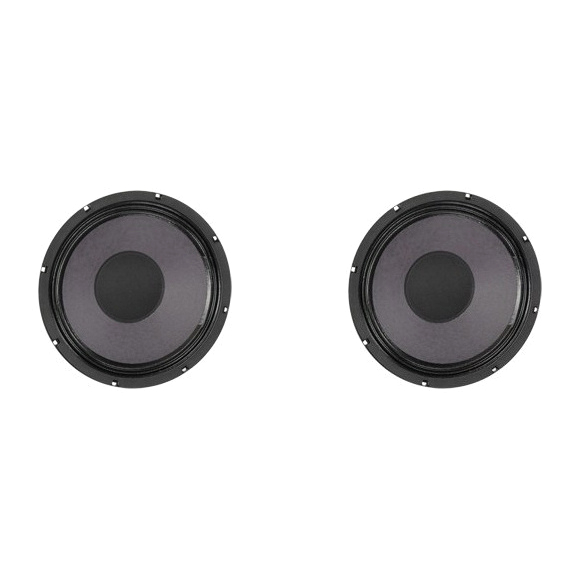

Pack of 2 Eminence - Ragin Cajun
Patriot Series - 75W 10" 8 ohm - American Rock - Blues and Country

Product Code: EMIPATRAGIN_2PK | Brand: Eminence
Pack of 2 Eminence - Ragin Cajun
£208.30
£173.58 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
5+
Available
£8.22 DELIVERY to mainland UK.
Pack of 2 Eminence - Ragin Cajun

The Eminence Ragin Cajun guitar speaker puts you in control to be heard loud and clear. Very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.


Specification


  • Nominal Basket Diameter 10", 254mm
  • Nominal Impedance* 8 ohms
  • Power Rating**
  • Watts 75W
  • Music Program N/A
  • Resonance 84Hz
  • Usable Frequency Range 70Hz - 5kHz
  • Sensitivity*** 100dB
  • Magnet Weight 30 oz.
  • Gap Height 0.31", 7.92mm
  • Voice Coil Diameter 1.5", 38.1mm

Thiele & Small Parameters


  • Resonant Frequency (fs) 84Hz
  • DC Resistance (Re) 7.3
  • Coil Inductance (Le) 0.39mH
  • Mechanical Q (Qms) 10.8
  • Electromagnetic Q (Qes) 0.68
  • Total Q (Qts) 0.64
  • Compliance Equivalent Volume (Vas) 34.1 liters / 1.2 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 18cc
  • Mechanical Compliance of Suspension (Cms) 0.18mm/N
  • BL Product (BL) 11.5 T-M
  • Diaphragm Mass Inc. Airload (MMs) 20 grams
  • Efficiency Bandwidth Product (EBP) 156
  • Maximum Linear Excursion (Xmax) 0.5mm
  • Surface Area of Cone (Sd) 366.1 cm2
  • Maximum Mechanical Limit (Xlim) N/A

Mounting Information


  • Recommended Enclosure Volume
  • Sealed Acceptable
  • Vented Acceptable
  • Driver Volume Displaced 66.9 cu.in. / 1.1 liters
  • Overall Diameter 10.11", 256.8mm
  • Baffle Hole Diameter 9.13", 231.8mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.23", 5.7mm
  • Mounting Holes B.C.D. 9.6", 243.8mm
  • Depth 4.3", 109mm
  • Net Weight 6.4 lbs, 2.9 kg
  • Shipping Weight 8.2 lbs, 3.7 kgs

Materials of Construction


  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Non-vented core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Paper cone edge
  • Dust Cap Composition Zurette dust cap


Detailed specifications unavailable, please EMAIL the sales office for additional information.
