dB-Mark DP28+ 2-in 8-out Active Crossover

Name: dB-Mark DP28+ 2-in 8-out Active Crossover
Brand: dBMark
SKU: DBMDP28PLUS
Price: 309.00 GBP
Availability: InStock

2 input 8 output Pro Speaker Management System Controller

Product Code: DBMDP28PLUS Brand: dBMark Model: DP28PLUS

dB-Mark DP28+ 2-in 8-out Active Crossover

£257.50
£257.50 ex VAT

3+
IN STOCK

Request stock Info

FREE DELIVERY

for mainland UK

Export prices without Sales Tax or VAT - additional customs fees may apply in your country

dB-Mark DP28+ 2-in 8-out Active Crossover

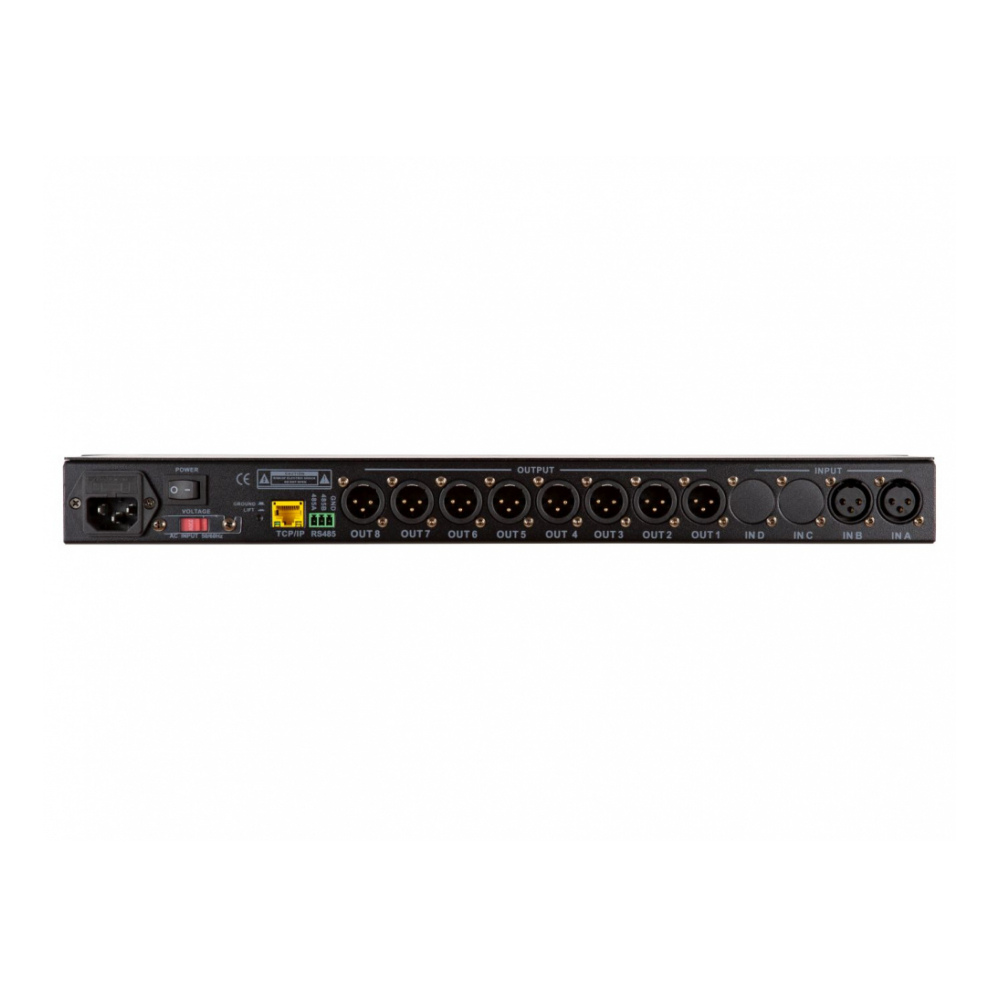

2 balanced inputs and 8 balanced outputs on XLRs. Outputs are impedance balanced, and not fully active balanced.
DP+ Series allows remote control over LAN via TCP/IP with built-in web-based GUI
All channels can be configured using Parametric EQ, High/Low Shelf EQ, and 1st/2nd order All Pass filters.
Fully adjustable crossover filters on all output channels, with slopes from 12dB to 48dB per octave.
Linkwitz-Riley, Butterworth, or Bessel curves can be individually selected on the high-pass and low-pass.
Each input has 2 dynamic EQs, noise gate, and adjustable compressor.
Automatic Gain Control available on input channels.
Configurable compressor and peak limiter on every output channel.
Delay on all channels, adjustable in milliseconds, metres or feet.
Full matrix mixing, route any input to any output.
All input and output channels can be individually muted.
Channels can be linked for convenience to allow editing of two or more channels at a time
32-bit digital signal processor with 24-bit 96KHz A/D and D/A converters.
USB 2.0/3.0, RS485*, and Ethernet connections are provided for PC control of multiple devices.
Operation possible using the front panel controls, Windows app, or the built-in web interface.
30 user-program presets can be stored into the device and recalled, or backed-up to PC via USB.
Password protection for partial or full lock of system settings.
LED indicators on all input and output channels for level, mute, compressor, limiter, and peak/clip.

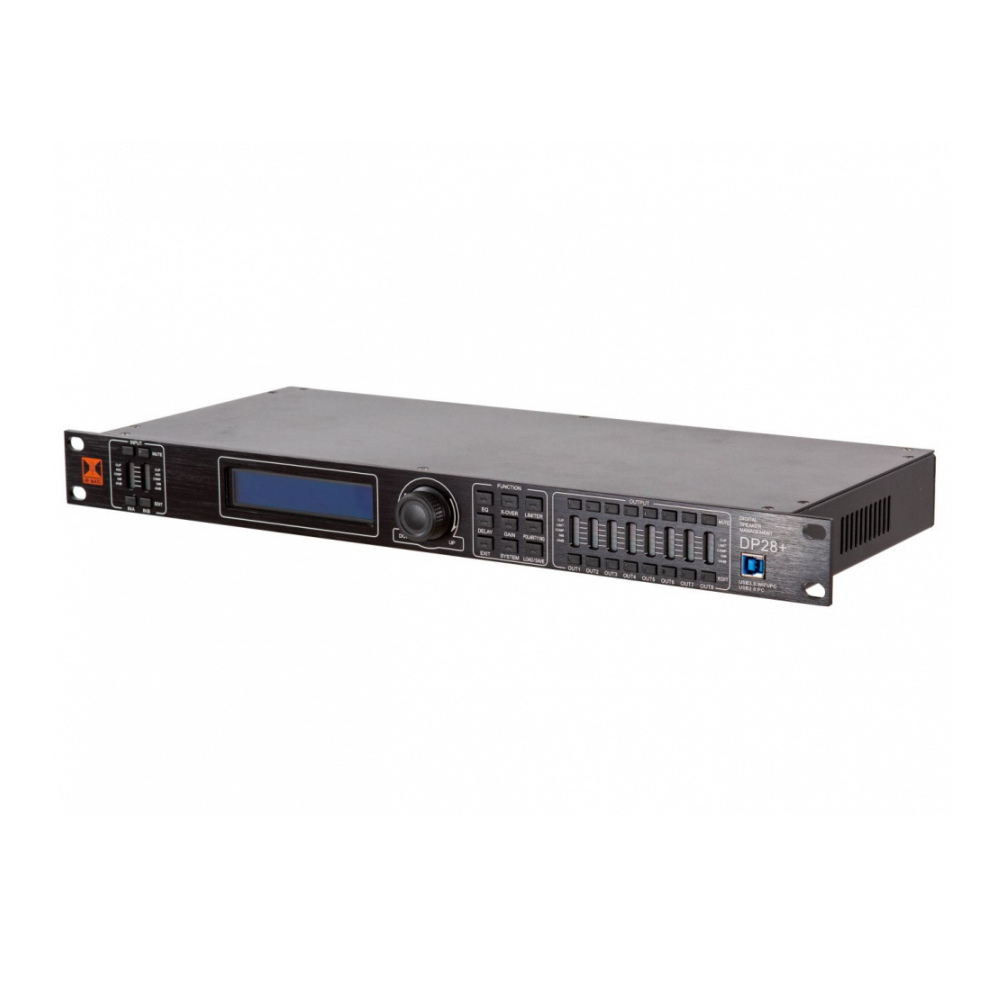

2x24 character dot-matrix blue back-lit LCD display.
Gross weight: 5kg
Shipping Dimensions: 562mm x 296mm x 98mm
Power 110V /220V AC 50/60Hz <25W

(*Phoenix connector required for RS485)

Please click here to visit www.dbmark.co.uk downloads page for all relevant software

Specifications

Input Channel & Socket 2CHs, Female XLR
Output Channel & Socket 8 CHs, Male XLR
Input Impedance Balance: 20Kohm
Output Impedance Balance: 100 ohm
PC Com Port One USB Com Port on front panel, 2 RS485 Com Port on back panel(RJ-45)
CMRR >70dB(1KHz)
Input Range 25dBu
Frequency Response 20Hz-20KHz(-0.5dB)
S/N R >104dB
THD <0.01% OUTPUT=0dBu/1KHz
Crosstalk of Channels >104dB(1KHz)
Functions of Input Channels
Input Mute Each channel has Independent Mute Control
Input Delay Each channel has Independent Delay Control Range: 1000ms stepover 21us@<10ms; stepover 84us@10-20ms; stepover:0.5ms@>20ms
Input Polarity Same Phase !plus! or reversed Phase -
Input EQ Each Input Channel has 6 Bands Parametric EQ Central Frequency Point:20Hz-20KHz, 239 frequency points totally Band Width:0.01oct-3oct @ stepover is 0.01oct Gain:-20dB- 20dB @ stepover , 0.1dB
Functions of Output Channels
Output Mute Each channel has Independent Mute Control
Output Selection Each input channel can be selected to each output channel
Output Gain Range:-12dB~!plus!12dB, step: 0.1dB
Output Delay Each channel has Independent Delay Control Range: 1000ms stepover 21us@<10ms; stepover 84us@10-20ms; stepover:0.5ms@>20ms
Output Polarity Same Phase !plus! or reversed Phase -
Crossover Each Channel can be set up LPF and HPF independently. Adjustable Parameters: Filter Types (Linkwitz-Riley/Besse/Butterworth ) Frequency Turning Point:20Hz-20KHz, 239 Frequency Points Decay of Slope:12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct
Limiter Each Channel can be set up limiter independently. Adjustable Parameters: Threshold Value:-20dBu-!plus!20dBu Stepover:0.5dBu@starting time:0.3ms-100ms Stepover<1ms @0.1ms, Stepover>1ms@1ms
Output EQ Each output channel can be set up as 6 Bands EQ. EQ Paramater , Lo-shelf/Hi-shelf can be selected for EQ Modes. When set as Parameter, the centre Frequency will be 20Hz-20kHz,the total Frequency points is 239.Band width:0.05 oct-3 oct.Step is 0.05 oct,Gain: -20dB-!plus!20dB, Step is 0.1dB.When set as Lo-Shelf and Hi-shelf,the centre Frequency is 20Hz - 20k Hz,the total Frequency points is 239, the slope is 6 dB/12 dB.Gain:-20dB-!plus!20dB.Step is 0.1 dB.
Processor 96KHz Sampling frequency, 32-bit Floating-Point DSP
Display With 2*24 LCD, 8-LED input/output level. Mute and Editing mode can be displayed.
Power 25W
Power Supply AC110V/220V 50/60Hz
Product Dimension(WxDxH) 482x232x44mm
Net Weight 3.6kg
Shipping Dimension(WxDxH)
1 pc: 562 x 362 x 98mm 0.0199m3
6 pcs:575 x 375 x 608mm 0.1311m3
Gross Weight 1PC:4.6(kg)
DAC Chip: ES9018K2M high performance with 127dB dynamic range and jitter elimination
ADC Chip: PCM1804 111dB dynamic range -102dB THD N
DSP Chip: TMS320C6722 capable of up to 1500 MFLOPS
Op Amps: Texas Instruments OPA1678 offering ultra low THD for hi-fi applications
