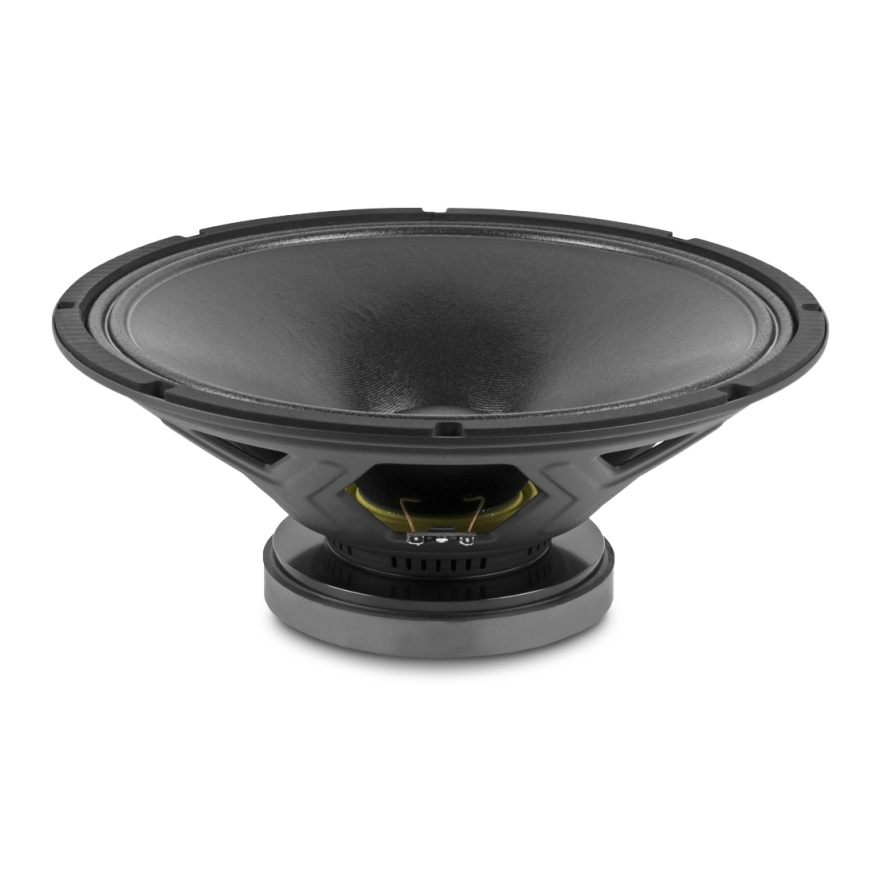

Beyma 15WRS400 15" Loudspeaker Driver
Click here to request product information for this item This is NOT a stock item, we can usually order this in and have stock within 90-94 working days. If you require this item urgently, please contact a member of staff to confirm availability.
Technical specifications
- Nominal Diameter: 380 mm (15 in)
- Overall Depth: 163 mm (6.42 in)
- Impedance: 8 ohm
- Minimum Impedance: 7 ohm
- AES Power: 400 W
- Program Power: 800 W
- Power: 400 W
- Sensitivity: 98.5 dB
- Frequency Range: 40-4000 Hz
- Voice Coil Diameter: 76.2 mm (3 in)
- Voice Coil Depth: 16 mm
- Magnetic Gap Depth: 8 mm
- Magnet Material: Ferrite
Thiele and small parameters
- Force Factor (BL) - 18.2 Tm
- Moving Mass - System (Mms) - 91 g
- Maximum Mechanical Excursion (Xdamage) - 30 mm
- Resonance (Fs) - 36 Hz
- DC Resistance (Re) - 5.6 Ohm
- Mechanical Q (Qms) - 9.1
- Electrical Q (Qes) - 0.35
- Total Q (Qts) - 0.33
- Compliance Equivalent Volume (Vas) - 236 L
- Compliance (Cms) - 215 mm/N
- Mechanical Resistance (Rms) - 2.3 Kg/s
- Reference Efficiency (Eta Zero) - 3 %
- Diaphragm Area (Sd) - 0.088 cm2
- Maximum Linear Excursion (Xmax) - 6.3 mm
- Peak Displacement Volume (Vd) - 555 cm3
Shipping Information
- Net Weight: 6.25 kg
- Shipping Weight: 7.25 kg
