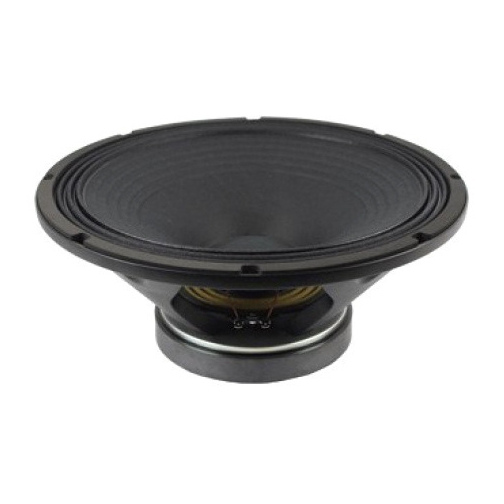

Beyma 15MC700 - 15" 400W 8 Ohm
Key Features
- High power handling: 1.400 W program power
- Exclusive Malt Cross Technology Cooling System
- Low power compression losses
- High sensitivity: 98 dB (1W / 1m)
- FEA optimized magnetic circuit
- Designed With Mmss Technology
- Optimized non-linear behavior
- Waterproof cone treatment on both sides of the cone
- 3\' DUO double layer in/out copper voice coil
- Aluminum demodulating ring
- Extended controlled displacement: Xmax ± 9,8 mm
- 40 mm peak-to-peak excursion before damage
- Optimized for low frequency and mid-bass applications
Technical Specifications
- Nominal diameter 380 mm 15 in
- Nominal impedance 8 Ohm
- Minimum impedance 7.6 ohm
- Power capacity 700 W AES
- Program power 1400 W
- Sensitivity 98 dB 1 W @ 1 m @ ZN

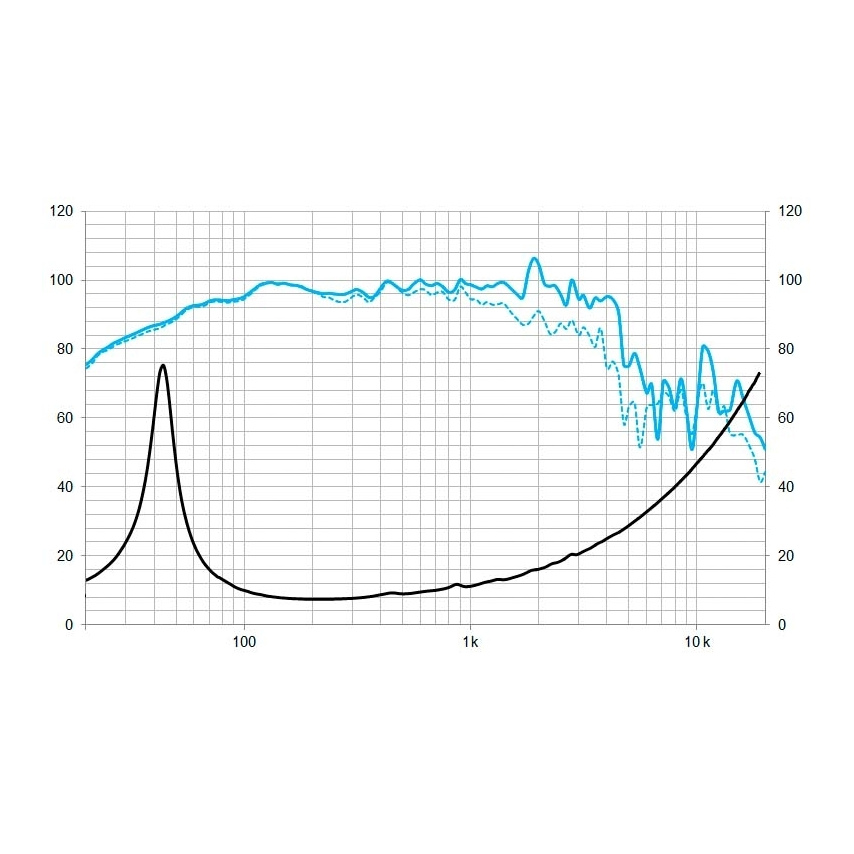

- Frequency range 45-4000 Hz
- Voice coil diameter 76.2 mm 3 in
- BL factor 20.6 N/A
- Moving mass 0.106 kg
- Winding length 23 mm
- Air gap height 8 mm
- Xdamage pp 40 mm
Thiele Small Parameters
- Fs 41 Hz
- Re 5.9 ohm
- Qms 4.8
- Qes 0.38
- Qts 0.35
- Vas 153 l
- Cms 140 µm / N
- Rms 5.7 kg/s
- Efficiency % 2.7
- Sd 0.088 m²
- Xmax 9.8 mm
- Vd 880 cm³
- Le @1 kHz 1mH
Constructive Details
- Depth 175 mm 6.89 in
- Net weight 7.5 kg 16.5 lb
- Total weight 8.5 kg 18.7 lb
- Magnet Ferrite
