Beyma 15G40 - 15" 700W 8 Ohm
SPL: 97.0dB Fs: 38Hz Xmax: 9.5mm

Product Code: BMA15G40-8 | Brand: Beyma
Beyma 15G40 - 15 inch 700W 8 Ohm

Beyma 15G40 - 15 inch 700W 8 Ohm Beyma 15G40 - 15 inch 700W 8 Ohm
£180.12
£150.10 ex VAT
Qty:
2-3 £178.32 ea.4-7 £176.52 ea.8+ £174.72 ea.
Login to see JAM Club pricing
Not a member? Join Now
£7.17 DELIVERY to mainland UK
Beyma 15G40 - 15" 700W 8 Ohm

This low frequency transducer is specially intended for the most demanding applications. Its design concept arises from the need of achieve a more resistant loudspeaker that matches the more and more power given by ultimate amplification systems. In order to accomplish that, almost every component of the speaker has been reconsidered: its voice coil has the benefits of an improved manufacturing process and the highest quality materials, while the dual spider configuration includes a nomex spider that maintains its compliance constant with the applied power. Moreover, the magnetic structure construction generates a symmetrical magnetic field and, at the same time, provides an efficient thermal path which contributes to heat dissipation. Furthermore, its parameters have been optimized to obtain an excellent bass response when used in small bass-reflex cabinets.

TECHNICAL SPECIFICATIONS:

  • Nominal diameter 380 mm 15 in
  • Nominal impedance 8 ohm
  • Minimum impedance 7 ohm
  • Power capacity 700 W AES
  • Program power 1400 W
  • Sensitivity 97 dB 1 W @ 1 m @ 2Π
  • Frequency range 40-1500 Hz
  • Recommended enclosure volume 40 / 150 l / 1.4 / 5.3 ft³
  • Voice coil diameter 100 mm 4 in
  • BL factor 23.3 N/A
  • Moving mass 0.126 kg
  • Winding length 23.5 mm
  • Air gap height 10 mm
  • Xdamage pp 33 mm


THIELE SMALL PARAMETERS:

  • Fs 38 Hz
  • Re 5.9 ohm
  • Qms 8
  • Qes 0.33
  • Qts 0.32
  • Vas 128 l
  • Cms 133 micro m / N
  • Rms 3.8 kg/s
  • Efficiency % 2.2
  • Sd 0.0830 sq m
  • Xmax 9.5 mm
  • Vd 790 sq cm
  • Le @1 kHz 2.7 mH


CONSTRUCTION DETAILS:

  • Net weight 10.4 kg 22.9 lb
  • Total weight 11.5 kg 25.4 lb
  • Magnet Ferrite

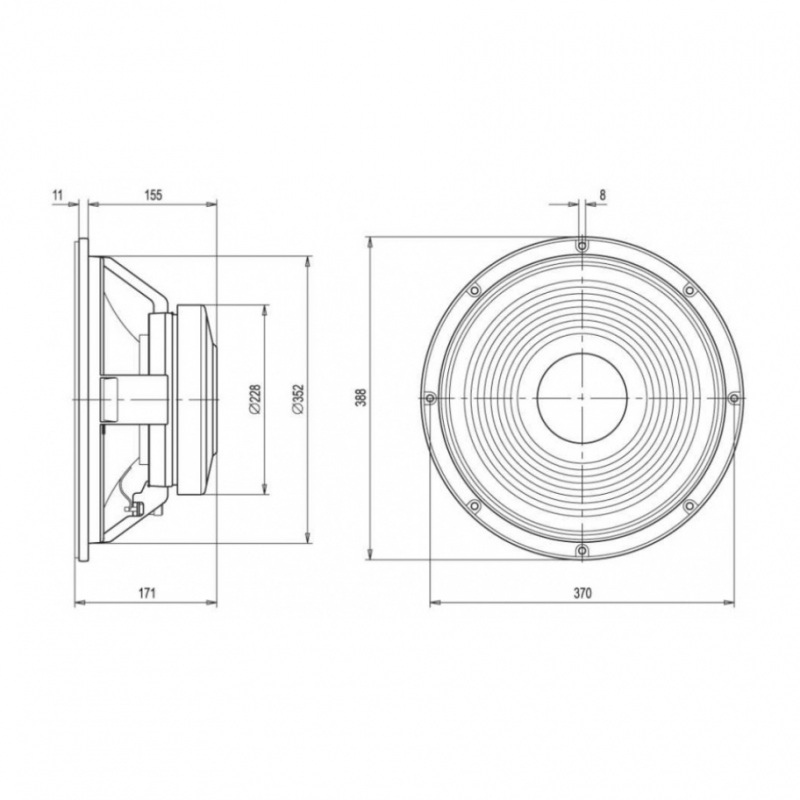

Mounting Information


  • Overall diameter - 388 mm 15.28 in
  • Bolt circle diameter - 370 mm 14.57 in
  • Baffle cutout diameter: -
  • - Front mount - 352 mm 13.86 in
  • Depth - 171 mm 6.70 in
  • Net weight - 10.4 kg 22.9 lb
  • Shipping weight - 11.5 kg 25.4 lb
