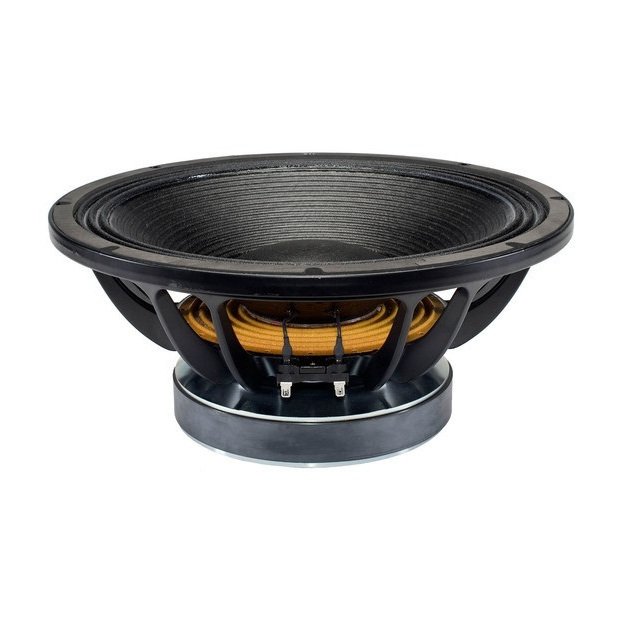

B&C 15TBW100 - 15" 1500W 8 Ohm Loudspeaker
SPL: 96.0dB Fs: 39Hz Xmax: 12.0mm - Faston terminals

Product Code: BAC15TBW100AM | Brand: B & C
B&C 15TBW100 - 15 inch 1500W 8 Ohm Loudspeaker

B&C 15TBW100 - 15 inch 1500W 8 Ohm Loudspeaker B&C 15TBW100 - 15 inch 1500W 8 Ohm Loudspeaker B&C 15TBW100 - 15 inch 1500W 8 Ohm Loudspeaker
£267.30
£222.75 ex VAT
2-3 £259.28 ea.4-7 £253.94 ea.8+ £248.59 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-5 months
Usually available in
3-5 months
£7.68 DELIVERY to mainland UK.
B&C 15TBW100 - 15" 1500W 8 Ohm Loudspeaker

  • 3000 W continuous program power capacity
  • 100 mm (4 in) split winding copper voice coil
  • 40 - 1500 Hz response
  • 95 dB sensitivity
  • 57 mm peak-to-peak excursion before damage
  • Double silicone spider with optimized compliance
  • Ventilated voice coil gap for reduced power compression
  • Aluminium demodulating ring for very low distortion

Technical specifications


  • Nominal Diameter: 380 mm (15.0 )
  • Overall Diameter: 393 mm (15.5 )
  • Bolt Circle Diameter: 374 mm (14.7 )
  • Baffle Cutout Diameter: 354.0 mm (13.9 )
  • Overall Depth: 191 mm (7.52 )
  • Flange/Gasket Thickness: 14 mm (0.55 )
  • Impedance: 8 ohm
  • Minimum Impedance: 6.7 ohm
  • Program Power: 3000 W
  • Power: 1500 W
  • Sensitivity: 96.0 dB
  • Frequency Range: 40 Hz
  • Voice Coil Diameter: 100 mm (4.0 )
  • Voice Coil Material: Copper
  • Voice Coil Former: Glass Fibre
  • Voice Coil Depth: 31.0 mm (1.22 )
  • Magnetic Gap Depth: 15.0 mm (0.59 )
  • Cone Shape: Radial
  • Cone Treatment: TWP Waterproof Both Sides
  • Surround Type: Triple Roll
  • Spider: Double Silicone
  • Magnet Material: Ferrite
  • Pole Design: T-Pole
  • Flux Density: 1.15 T
  • Driver Displacement Volume: 6.0 L
  • Recommended Enclosure: 95.0
  • Recommended Tuning: 40


Thiele and small parameters


  • Resonance (Fs) - 39 Hz
  • DC Resistance (Re) - 5.3 Ohm
  • Electrical Q (Qes) - 0.33
  • Mechanical Q (Qms) - 4.4
  • Total Q (Qts) - 0.31
  • Compliance Equivalent Volume (Vas) - 96.0 L
  • Diaphragm Area (Sd) - 855.0 cm2
  • Reference Efficiency (Eta Zero) - 1.6 %
  • Maximum Linear Excursion (Xmax) - 12.0 mm
  • Xvar (Xvar) - 13.5
  • Moving Mass - System (Mms) - 181.0 g
  • Force Factor (BL) - 26.4 Tm
  • Voice Coil Inductance (Le) - 2.2 mH
  • Efficiency Bandwidth Product (EBP) - 118

Shipping Information


  • Net Weight: 14.3 kg
  • Shipping Weight: 15.6 kg
  • Shipping Box: 425x425x224
  • Multipack Quantity: 1
