Faital Pro 15PR450 400W 8 Ohm Loudspeaker Driver
Introducing the Faital Pro 15PR450, the perfect choice for high-quality audio at an unbeatable price point. With its low resonance and high efficiency, this 15-inch woofer delivers powerful bass response and accurate sound reproduction in any audio system. Whether you're designing a home theater, studio monitor, or live sound system, the 15PR450 is a reliable and versatile choice that won't break the bank. Upgrade your audio game with the Faital Pro 15PR450.
This is NOT a stock item, we can usually order this in and have stock within 75-79 working days. If you require this item urgently, please contact a member of staff to confirm availability.
Technical specifications

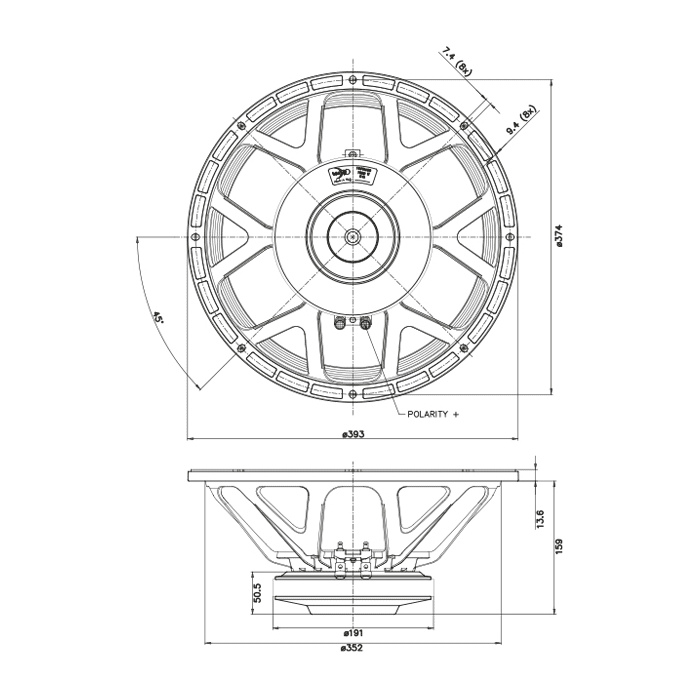

- Nominal Diameter: 380 mm (15in)
- Overall Diameter: 393 mm (15.47in)
- Bolt Circle Diameter: 374 mm (14.72in)
- Baffle Cutout Diameter: 356 mm (14.02in)
- Overall Depth: 172.6 mm (6.80in)
- Flange/Gasket Thickness: 13.6 mm (0.54in)
- Impedance: 8 ohm
- Minimum Impedance: 6.2 ohm
- AES Power: 400 W
- Program Power: 800 W
- Sensitivity: 98 dB
- Frequency Range: 35:4000 Hz
- Voice Coil Diameter: 77 mm (3in)
- Voice Coil Material: Al
- Voice Coil Former: Glass Fiber
- Voice Coil Depth: 15 mm (0.59in)
- Magnetic Gap Depth: 9 mm (0.35in)
- Surround Type: Accordion
- Spider Profile: 1x constant height waves
- Chassis Material: Aluminum
- Magnet Material: Ferrite Ring
- Demodulating Ring: Aluminum Ring
- Flux Density: 1.15 T
- Driver Displacement Volume: 4.1 L (0.145ft^3)
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- Resonance (Fs) - 35 Hz
- DC Resistance (Re) - 5.1 Ohm
- Electrical Q (Qes) - 0.37
- Mechanical Q (Qms) - 6.9
- Total Q (Qts) - 0.35
- Compliance Equivalent Volume (Vas) - 235.6 L
- Diaphragm Area (Sd) - 857 cm2
- Maximum Linear Excursion (Xmax) - 6.00 mm
- Maximum Mechanical Excursion (Xdamage) - 23 mm
- Moving Mass - System (Mms) - 90 g
- Force Factor (BL) - 16.6 Tm
- Voice Coil Inductance (Le) - 0.65 mH
- Moving Mass - Diaphragm (Mmd) - 61.6 g
- Compliance (Cms) - 0.23 mm/N
- Mechanical Resistance (Rms) - 2.9 Kg/s
- Reference Efficiency (Eta Zero) - 2.67 %
- Efficiency Bandwidth Product (EBP) - 96
Shipping Information
- Net Weight: 7.8 kg (17.2lb)
- Shipping Weight: 8.9 kg (19.6lb)
- Shipping Box: 430 x 427 x 236 mm
Notes
1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
