RCF M35 Replacement Diaphragm for CD350 and ND350 Compression Driver
As used in ART 710A, ART712A and ART715A Mk1 and Mk2

Product Code: RCFND350DIA | Brand: RCF
RCF M35 Replacement Diaphragm for CD350 and ND350 Compression Driver
£44.65
£37.21 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
£10.98 DELIVERY to mainland UK.
RCF M35 Replacement Diaphragm for CD350 and ND350 Compression Driver

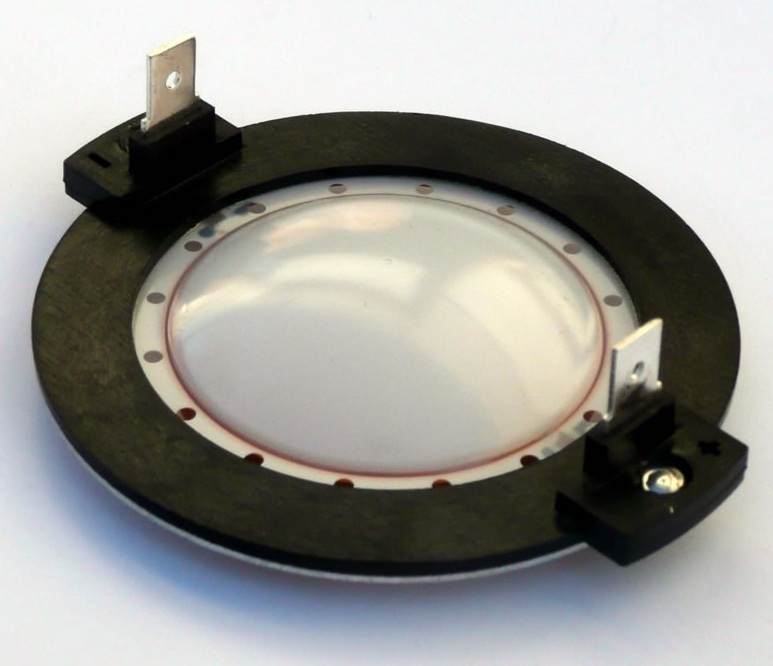

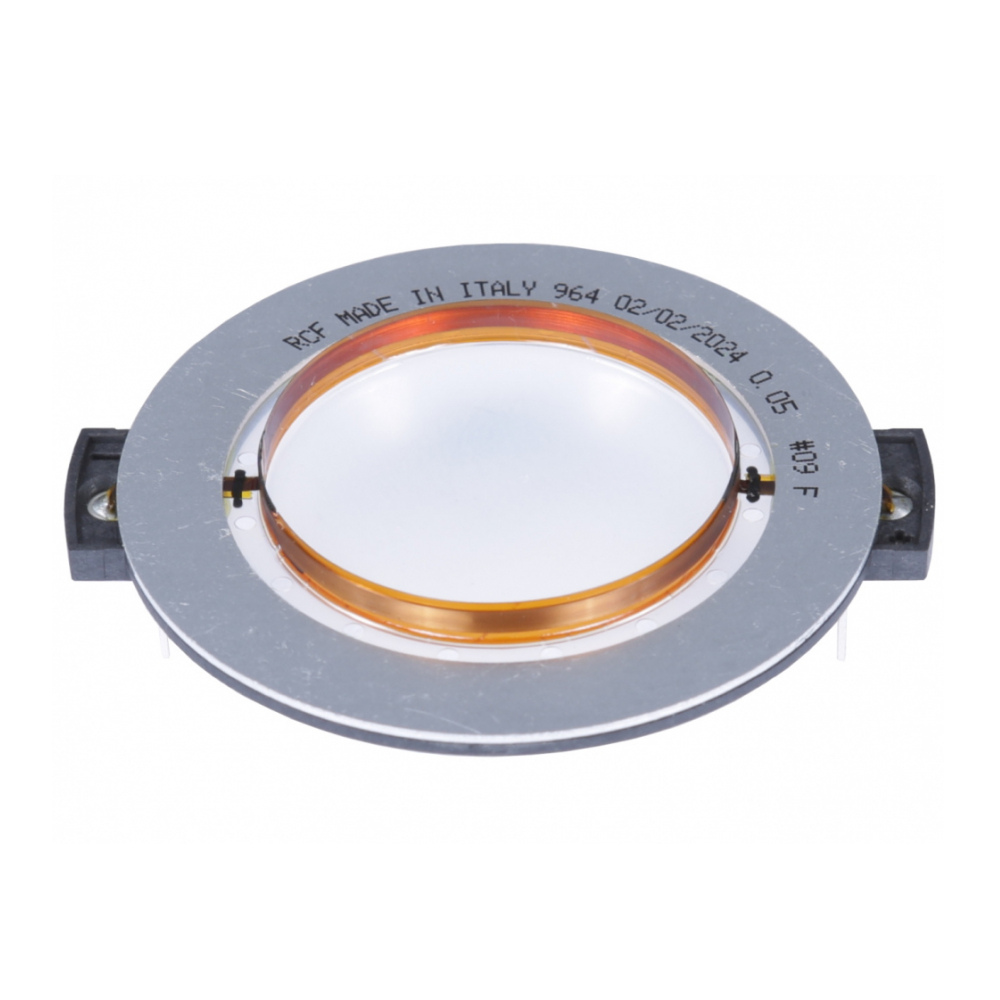

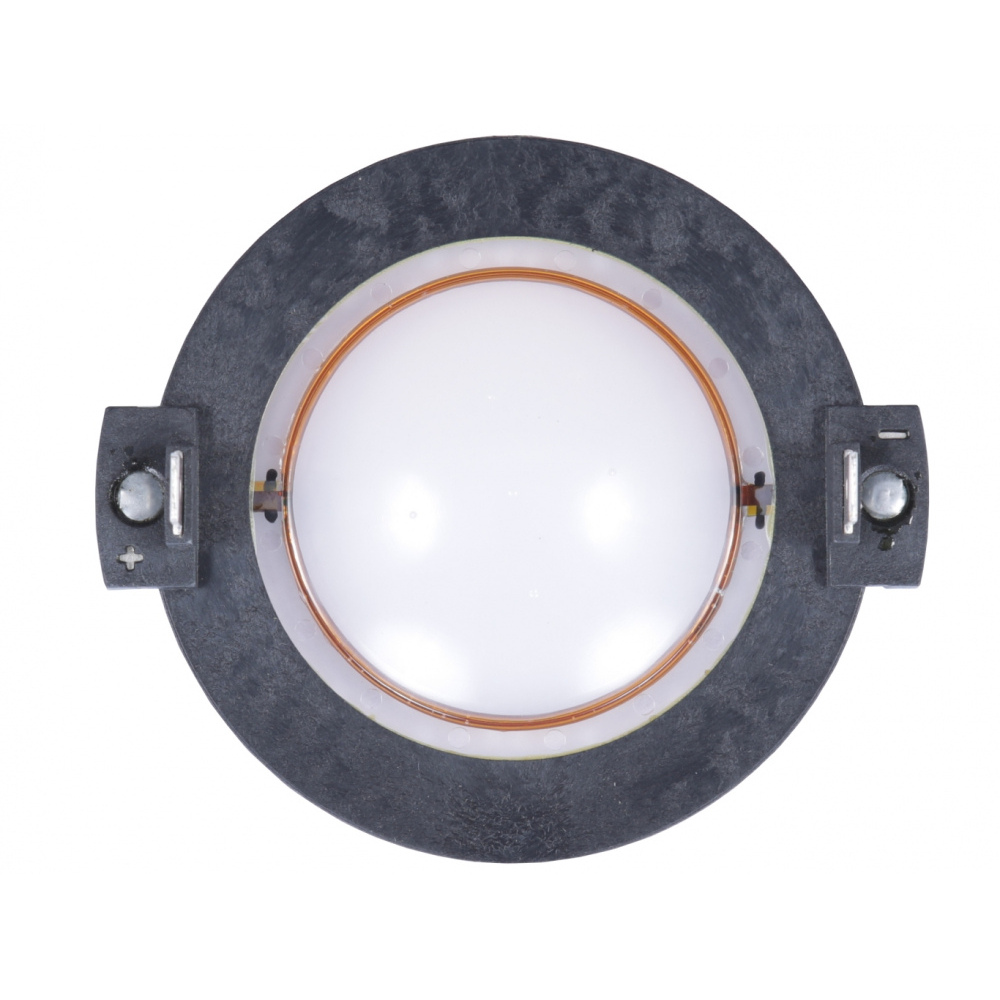

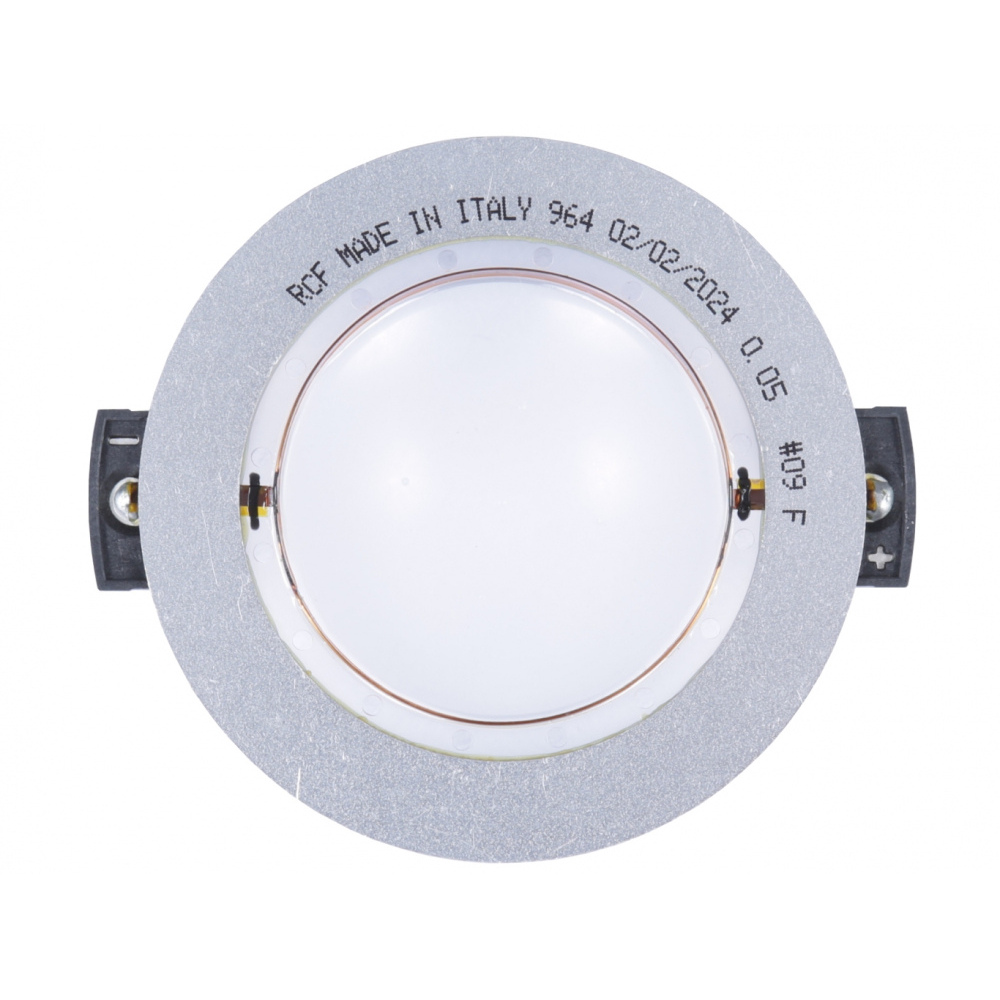

Official RCF Manufacturer's replacement diaphragm for RCF ND350 and CD350 compression driver. This is also the same diaphragm used in the ART710, ART712A Mk1 and ART712 Mk2 and ART715A Mk1 and Mk2 speaker cabinets. This is what you need to repair a blown compression driver.


Technical skills are required for fitting, do not try this if you don't know what you are doing! Replacement diaphragms are classed as consumables and we are unable to offer returns on these items



Dimensions:

  • Voice coil diameter 44.4mm
  • Frame diameter 72mm
  • Distance between terminals 63mm
  • Frame thickness 3mm
  • Width at widest point (across terminal lugs) 82mm


Detailed specifications unavailable, please EMAIL the sales office for additional information.
