dB-Mark DP48 PLUS V2 - 4-in 8-out Digital Active Crossover
4 input 8 output Pro Speaker Management System Controller

Product Code: DBMDP48PLUS | Brand: dBMark
dB-Mark DP48 PLUS V2 - 4-in 8-out Digital Active Crossover

dB-Mark DP48 PLUS V2 - 4-in 8-out Digital Active Crossover dB-Mark DP48 PLUS V2 - 4-in 8-out Digital Active Crossover
£429.00
£357.50 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
£2.10 DELIVERY to mainland UK.
dB-Mark DP48 PLUS V2 - 4-in 8-out Digital Active Crossover

All XCA PLUS V2 models since July 2021 have ethernet connectivity with web based GUI, allowing you to control the settings from any Windows based device on the same network that supports a modern browser with javascript enabled.

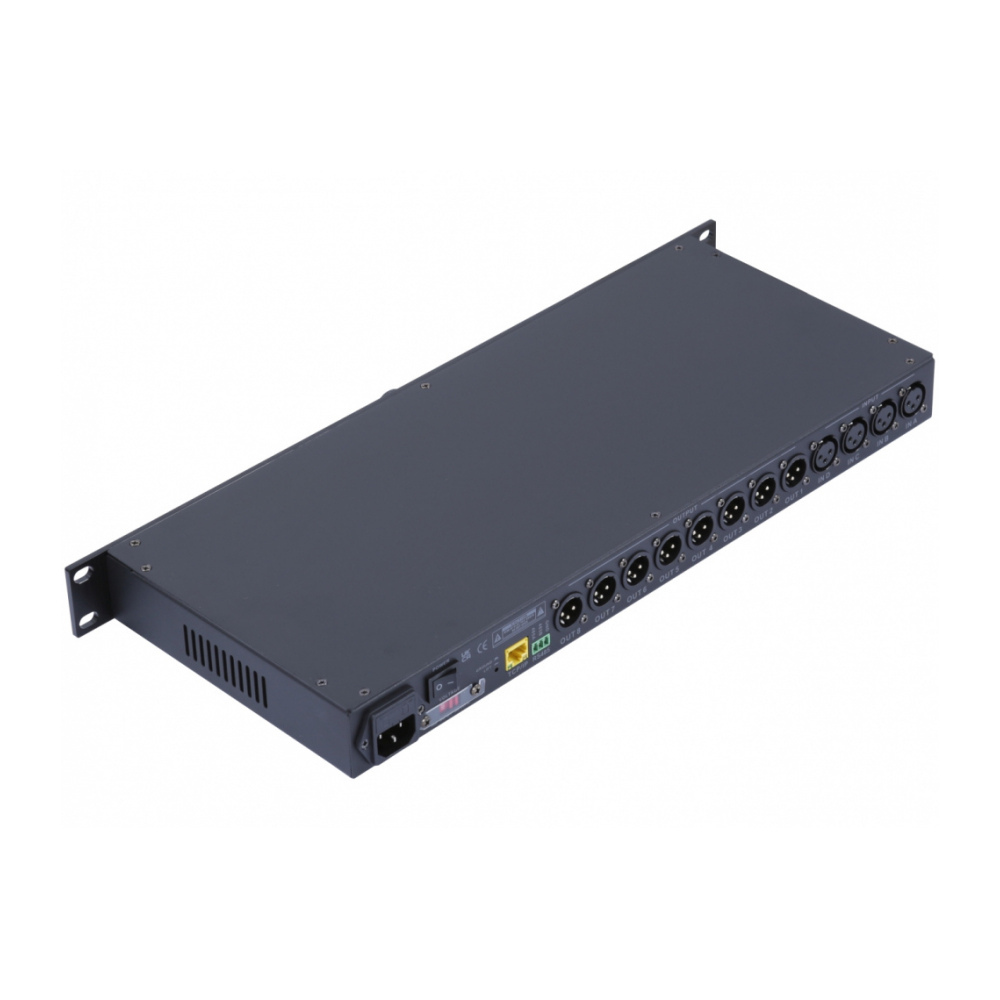

  • 4 balanced inputs and 8 balanced outputs on XLRs. Outputs are impedance balanced, and not fully active balanced
  • DP+ Series allows remote control over LAN via TCP/IP with built-in web-based GUI
  • All channels can be configured using Parametric EQ, High/Low Shelf EQ, and 1st/2nd order All Pass filters.
  • Fully adjustable crossover filters on all output channels, with slopes from 12dB to 48dB per octave.
  • Linkwitz-Riley, Butterworth, or Bessel curves can be individually selected on the high-pass and low-pass.
  • Each input has 2 dynamic EQs, noise gate, and adjustable compressor.
  • Automatic Gain Control available on input channels.
  • Configurable compressor and peak limiter on every output channel.
  • Delay on all channels, adjustable in milliseconds, metres or feet.
  • Full matrix mixing, route any input to any output.
  • All input and output channels can be individually muted.
  • Channels can be linked for convenience to allow editing of two or more channels at a time
  • 32-bit digital signal processor with 24-bit 96KHz A/D and D/A converters.
  • USB 2.0/3.0, RS485*, and Ethernet connections are provided for PC control of multiple devices.
  • Operation possible using the front panel controls, Windows app, or the built-in web interface.
  • 30 user-program presets can be stored into the device and recalled, or backed-up to PC via USB.
  • Password protection for partial or full lock of system settings.
  • LED indicators on all input and output channels for level, mute, compressor, limiter, and peak/clip.

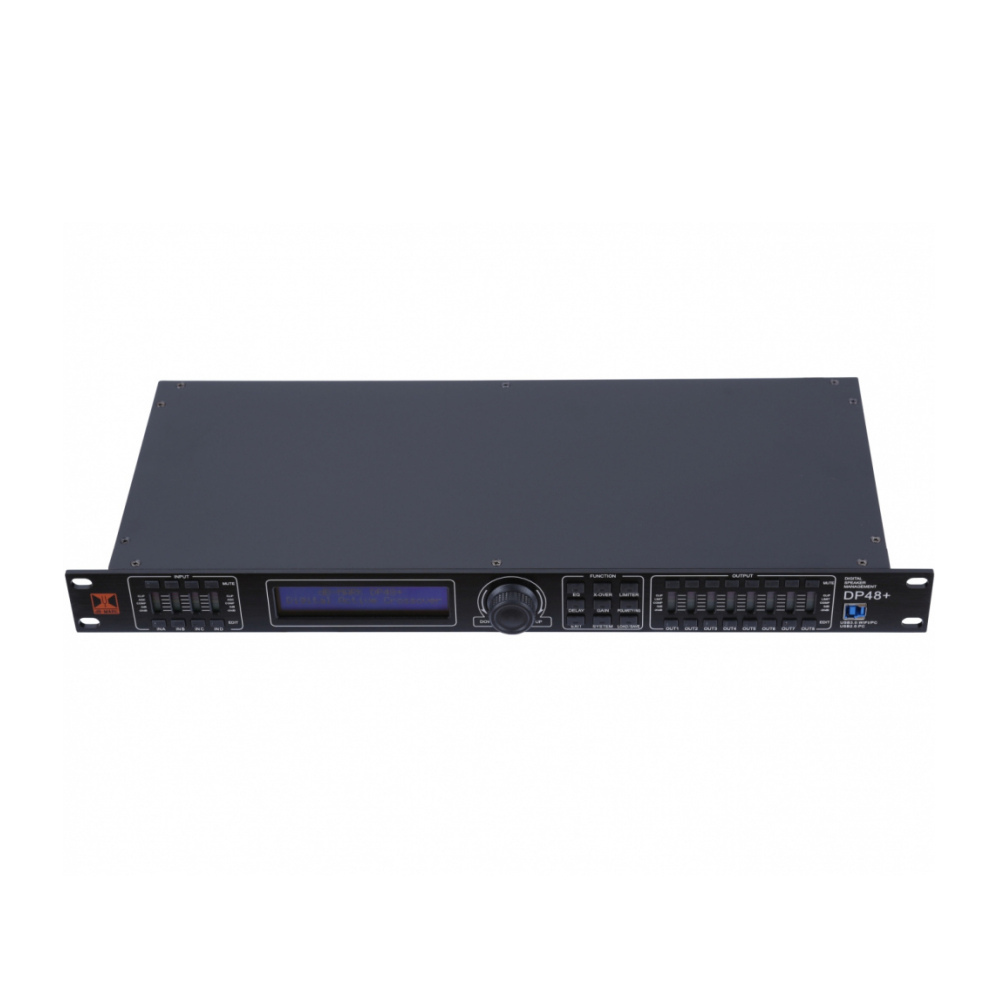

  • 2x24 character dot-matrix blue back-lit LCD display.
  • Gross weight: 5kg
  • Shipping Dimensions: 562mm x 296mm x 98mm
  • Power 110V /220V AC 50/60Hz <25W

(*Phoenix connector required for RS485)

Please click here to visit www.dbmark.co.uk downloads page for all relevant software

Specifications


  • Input Channel & Socket 4CHs, Female XLR
  • Output Channel & Socket 8 CHs, Male XLR
  • Input Impedance Balance: 20KΩ
  • Output Impedance Balance: 100Ω
  • PC Com Port One USB Com Port on front panel, 2 RS485 Com Port on back panel(RJ-45)
  • CMRR >70dB(1KHz)
  • Input Range <= 25dBu
  • Frequency Response 20Hz-20KHz(-0.5dB)
  • S/N R >104dB
  • THD <0.01% OUTPUT=0dBu/1KHz
  • Crosstalk of Channels >104dB(1KHz)
  • Functions of Input Channels
  • Input Mute Each channel has Independent Mute Control
  • Input Delay Each channel has Independent Delay Control Range:0-1000ms step 21us@<10ms; step 84us@10-20ms; step:0.5ms@>20ms
  • Input Polarity Same Phase or reversed Phase -
  • Input EQ Each Input Channel has 6 Bands Parametric EQ Central Frequency Point: 20Hz-20KHz, 239 frequency points totally Band Width:0.01oct-3oct @ stepover is 0.01oct Gain:-20dB to 20dB @ step: 0.1dB
  • Functions of Output Channels
  • Output Mute Each channel has Independent Mute Control
  • Output Selection Each input channel can be selected to each output channel
  • Output Gain Range:-12dB to 12dB, step: 0.1dB
  • Output Delay Each channel has Independent Delay Control Range:0-1000ms stepover 21us@<10ms; stepover 84us@10-20ms; stepover:0.5ms@>20ms
  • Output Polarity Same Phase !plus! or reversed Phase -
  • Crossover Each Channel can be set up LPF and HPF independently. Adjustable Parameters: Filter Types (Linkwitz-Riley/Besse/Butterworth ) Frequency Turning Point:20Hz-20KHz, 239 Frequency Points Decay of Slope:12dB/oct, 18dB/oct,24dB/oct, 48dB/oct
  • Limiter Each Channel can be set up limiter independently. Adjustable Parameters: Threshold Value:-20dBu- 20dBu Stepover:0.5dBu@starting time:0.3ms-100ms Stepover<1ms @0.1ms, Stepover>1ms@1ms
  • Output EQ Each output channel can be set up as 6 Bands EQ. EQ Parameter , Lo-shelf/Hi-shelf can be selected for EQ Modes. When set as Parameter, the centre Frequency will be 20Hz-20kHz,the total Frequency points is 239.Band width:0.05 oct-3 oct.Step is 0.05 oct,Gain: -20dB-!plus!20dB, Step is 0.1dB.When set as Lo-Shelf and Hi-shelf, the centre Frequency is 20Hz - 20k Hz, the total Frequency points is 239, the slope is 6 dB/12 dB.Gain:-20dB to 20dB.Step is 0.1 dB.
  • Processor 96KHz Sampling frequency, 32-bit Floating-Point DSP
  • Display With 2*24 LCD, 8-LED input/output level. Mute and Editing mode can be displayed.
  • Power ~25W
  • Power Supply AC110V/220V 50/60Hz
  • Product Dimension(WxDxH) 482mm x 232mm x 44mm
  • Net Weight 3.6kg
  • Shipping Dimension(WxDxH) 1pc: 562mm x 362mm x 98mm 6pcs: 575mm x 375mm x 608mm
  • Gross Weight 1pc: 4.6(kg)
  • DAC Chip: ES9018K2M high performance with 127dB dynamic range and jitter elimination
  • ADC Chip: PCM1804 111dB dynamic range -102dB THD N
  • DSP Chip: TMS320C6722 capable of up to 1500 MFLOPS
  • Op Amps: Texas Instruments OPA1678 offering ultra low THD for hi-fi applications
