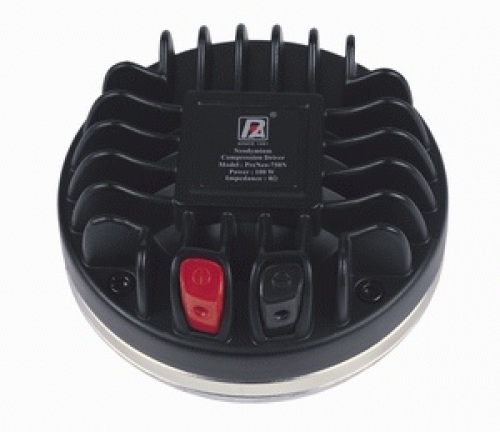

The P Audio PreNeo-750N is a state of the art high output compression driver. Advanced engineering and manufacturing methods have produced an extremely reliable and wide bandwidth device that also features very high fidelity.
The PreNeo-750N is a large format titanium based diaphragm assembly mated to a close spaced circumferential phase plug geometry. The voice coil is a rectangular geometry high temperature aluminum to insure extended high frequency response.
The large 2 inch (50mm) throat exit makes the 750N an excellent choice for high sound pressure level performance. This large throat insures low distortion and high intelligibility, particularly thru the critical upper vocal range. High fidelity thru the upper vocal range translates to increased intelligibility and clarity in this critical upper vocal range. This throat diameter is an industry standard for high output vocal range compression drivers and will mate to a variety of P Audio 2 inch throat horns as well as many commercially available high frequency horns.
The Neodymium based permanent magnetic system produces a very high efficiency to weight and size ratio. This makes the PreNeo-750N ideal for high level professional touring applications as well as high level fixed installation systems.
Throat Diameter 2.0 inch (50mm)
Diaphragm Diameter 3.0 inch (76mm)
Nominal Impedance 8 Ohm
Voice Coil DC Resistance 6.2 Ohm
Power Handling 100Watt
Sound Pressure Level (1W@1M) 112 dB
(Loaded with 90x40 Horn)
Mounting Type Bolt On
Diaphragm Material Titanium
Recommended Crossover 1kHz or higher
(12dB/Oct slope) This product appears to be unavailable. Please contact us if you require this product, and we will make further enquiries or look for an equivalent model..
