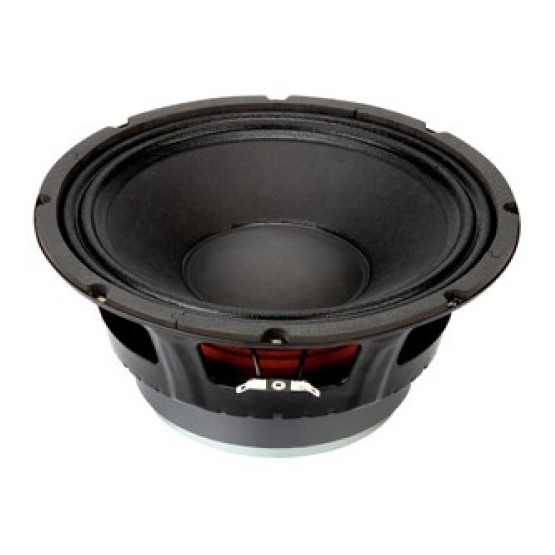

P Audio E10-200S 10 Inch 200W Low Frequency Loudspeaker Driver

Product Code: PAUE10200S | Brand: P-Audio | Model: E10-200S




£47.89
Login to see JAM Club pricing
Not a member? Join Now
Mainland UK DELIVERY:
£5.48
European Delivery Prices
15
IN STOCK

Qty:
P Audio E10-200S 10 Inch 200W Low Frequency Loudspeaker Driver

P-Audio's truly outstanding E-series drivers represent excellent value for money - and we're so confident in them, we're prepared to back them up with a three year warranty for all of our UK mainland sales.


The P Audio E10-200S is a high output full range/mid bass transducer. The E10-200S is an upgraded design that features many of P Audio's new technologies and performance upgrades. The 10 inch (254mm) diameter piston will produce extremely high sound pressure levels at very low frequencies and is ideal for high level deep bass and sub woofer response in both live sound and recorded music venues. The operating bandwidth of the E10-200S is 50Hz to 3000Hz. The transducer uses high energy ferrite based magnetics to achieve a very high acoustic output to weight ratio.


The E10-200S employs a medium format 2.5 inch (63.7mm) diameter voicecoil that provides an AES rated 200 watts of continuous power handling and a full 800 watts of peak rated power handling when sufficient amplifier headroom is available. The E10-200S utilizes P Audio's under damper venting technology to improve transducer air flow and reduce turbulence under the damper and around the voice coil.


The voice coil design is a bobbin wound geometry with P Audio's precision round wire technology to maximize system conversion efficiency.


The suspension has been designed specifically for high linear displacement and extended low frequency response. The transducer chassis is a heavy gauge stamped steel design that ensures a very high degree of structural integrity.


Specifications:

  • Nominal diameter 254mm/10"
  • Power rating 200 W(AES)
  • Nominal impedance 8 Ohms
  • Sensitivity 93 dB
  • Frequency range 50-3000 Hz
  • Chassis type Heavy Duty Stamp Steel
  • Magnet type Ferrite
  • Magnet weight 1.41kg
  • Voice coil diameter 63.7 mm/2.5 in
  • Coil material CCA-W
  • Former material Kapton
  • Cone material Paper
  • Surround material Cloth
  • Suspension Single
  • X-max 4.1 mm/0.16 in
  • Gap depth 8 mm/0.31 in
  • Voice coil winding width 16.2 mm/0.64 in
  • Overall diameter 257mm
  • Mounting circle PCD 300mm
  • Mounting hole size 5.2mm dia.
  • Baffle cutout diameter (front mount) 233mm
  • Magnet diameter 156mm
  • Overall mounting depth of driver 109.4mm
  • Net Weight 4.2 kg
  • Packing Dimension WxDxH 270 x 270 x 145 mm
  • Shipping Weight 4.5 kg/ lb


Thiele Small Parameters:

  • Re 5.9
  • Fs 73 Hz
  • Mms 38.1g
  • Mmd 34.1g
  • Qms 6.37
  • Qes 0.65
  • Qts 0.59
  • Vas 23.44 lt
  • BI 12.59 Tm
  • Cms 1.3e-04 m/N
  • Rms 2.74 Ns/m
  • Le (at 1kHz) 0.44 mH


Click here to download the specification sheet (113 kb)
