Faital Pro 18HP1022 - 18" 1000W 8 Ohm
With Push-button Spring Terminals

Product Code: FTP18HP1022AP | Brand: Faital Pro


£224.36
£186.97 ex VAT
Qty:

2-3 £221.00 ea.4-7 £217.63 ea.8+ £214.27 ea.
Login to see JAM Club pricing
Not a member? Join Now
£2.54 DELIVERY to mainland UK

Faital Pro 18HP1022 - 18" 1000W 8 Ohm

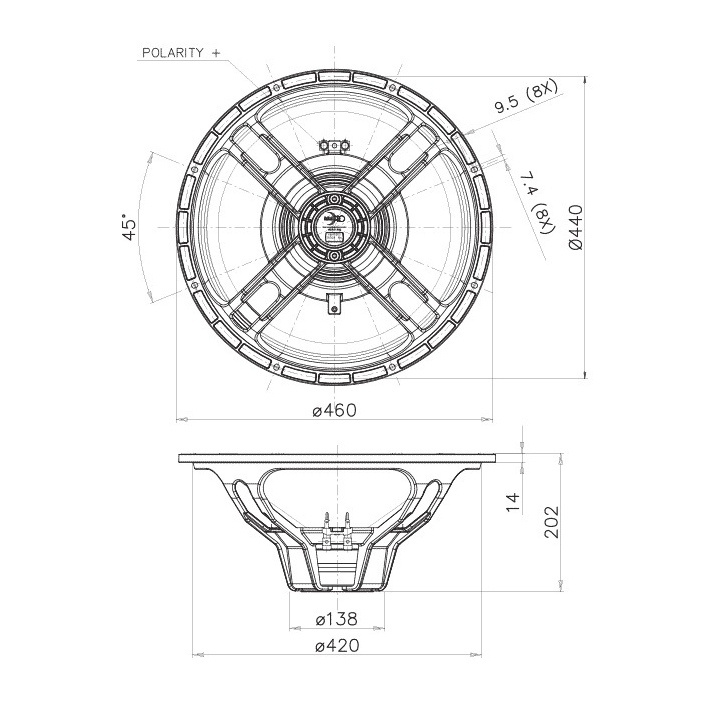

Nominal Specifications


  • Nominal Diameter - 460 mm (18 in)
  • Overall Diameter - 460 mm (18.11 in)
  • Bolt Circle Diameter - 440 mm (17.32 in)
  • Baffle Cutout Diameter - 422 mm (16.61 in)
  • Depth - 202 mm (7.95 in)
  • Flange and Gasket Thickness - 14 mm (0.55 in)
  • Net Weight - 6.6 Kg (14.6 lb)
  • Shipping Box (Single Carton Box) - 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
  • Shipping Weight - 7.8 Kg (17.2 lb)

Technical Parameters


  • Nominal Impedance - 8 Ohm
  • Minimum Impedance - 6.5 Ohm
  • AES Power Handling (1) - 1000 W
  • Maximum Power Handling (2) - 2000 W
  • Sensitivity (1W/1m) - 98 dB
  • Frequency Range - 35-1600 Hz
  • Voice Coil Diameter - 100 mm (4 in)
  • Winding Material - Cu
  • Former Material - Glass Fiber
  • Winding Depth - 23 mm (0.91 in)
  • Magnetic Gap Depth - 12 mm (0.47 in)
  • Flux Density - 1.3 T
  • Magnet - Neodymium Slug
  • Basket Material - Aluminum
  • Demodulation - No
  • Cone Surround (3) - Triple Roll
  • NET Air Volume filled by Loudspeaker - 5.8 l (0.205 ft^3)
  • Spider Profile - 2x non-adjacent symmetrical constant height waves

Thiele and small parameters


  • Fs - 35 Hz
  • Re - 5.4 Ohm
  • Qes - 0.31
  • Qms - 14.4
  • Qts - 0.3
  • Vas - 179 l (6.32 ft^3)
  • Sd - 1124 cm^2 (174.22 in^2)
  • Xmax (4) - 9.50 mm
  • Xdamage (5) - 17.5 mm
  • Mms - 207.0 g
  • Bl - 28 N/A
  • Le - 1.75 mH
  • Mmd - 185.7 g
  • Cms - 0.10 mm/N
  • Rms - 3.67 Kg/s
  • Eta Zero - 2.43 %
  • EBP - 113 Hz
