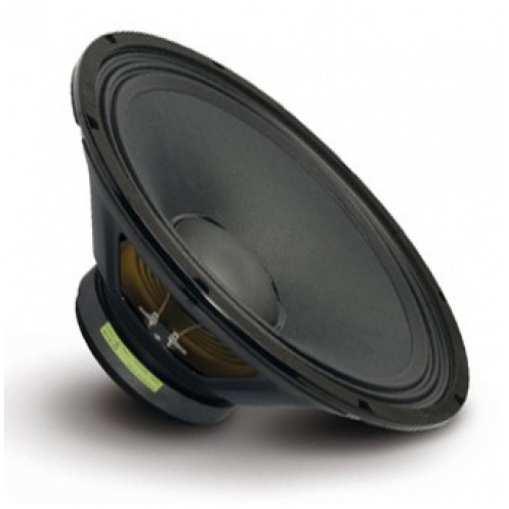

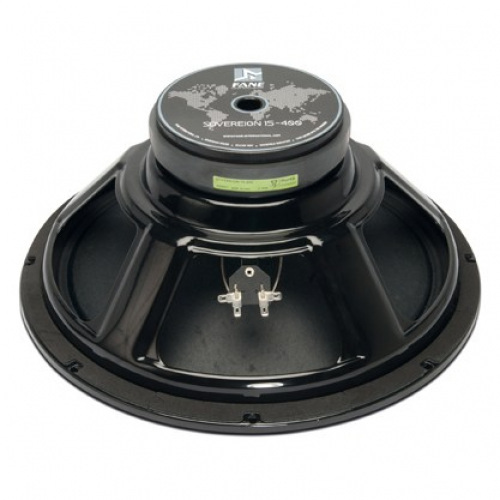

High power 15" driver designed for 2 way pro sound applications. Ideally suited for small sealed floor wedges or medium sized vented boxes. Also suitable for monitors or bass guitar. Usable frequency range: 45Hz - 4kHZ.
The all new FANE Sovereign Series comprises fifteen cone drivers designed for a broad spectrum of sound reinforcement situations. Midrange, fullrange, bass-mid and dedicated bass applications are comprehensively covered.
Featuring heavy duty FANE pressed steel chassis providing rugged durability and consistant performace in even the most demanding of environments, glass fibre voice coils capable of delivering outstanding power handling capabilities and carefully selected cone materials for smooth tonal characteristics and extended bass response, the FANE Sovereign represents an exciting and versatile answer to the demands of a varied and demanding range of audio applications.
ELECTRO ACOUSTIC SPECIFICATIONS:
Nominal Chassis Diameter 15"
Impedance 8 Ohms
Power Handling 400 w (EIA 426A)
Peak Power (6dB Crest Factor) 1600 w (EIA 426A)
Usable Frequency Range -6dB 40 Hz - 4 kHz
Sensitivity (1 w - 1 m) 98.5 dB
Moving Mass inc. Air Load 91.54g
Minimum Impedance Zmin 6.2 Ohms
Effective Piston Diameter 382 mm / 15.03"
Peak Displacement Volume of Cone Vd 0.3 litres
Magnet Weight 56 oz
Magnetic Gap Depth 10 mm / 0.39"
Flux Density 1.1 Tesla
Coil Winding Height 16 mm / 0.62"
Voice Coil Diameter 63.5 mm / 2.5"
THIELE SMALL PARAMETERS:
FS Hz 37 Hz
RE Ohms 5.2 Ohms
Vas Ltr 210
Vd litres 0.3
CMS (mm/N) 0.202
BL T/m 18.6
Mms (grms) 91.54
Xmax (mm) 3.45
Sd (cm2) 855.3
Efficiency % 3.205
Le (1kHz) 1.6 mH
MATERIALS OF CONSTRUCTION:
Former Material Glass Fibre
Voice Coil Copper
Magnet Material Ferrite
Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
Dust Dome Paper
Connectors Solder Tag
Polarity Positive Voltage at Red Terminal Causes Forward Motion of Cone
MOUNTING / SHIPPING INFORMATION
Overall Diameter 381 mm / 15.00"
Flange Height 9 mm / 0.35"
Baffle Hole Diameter F/M 352 mm / 13.85"
Baffle Hole Diameter R/M 352 mm / 13.85”
Gasket Supplied Front & Rear
Fixing Holes 8x 6.35 mm on 369.2 mm / 14.56"
Depth 162 mm / 6.37"
Weight 5.2 kg / 11.46 lb
Recommended Enclosure Volume 2.11 - 4.41 cu ft /
60 - 125 litres
