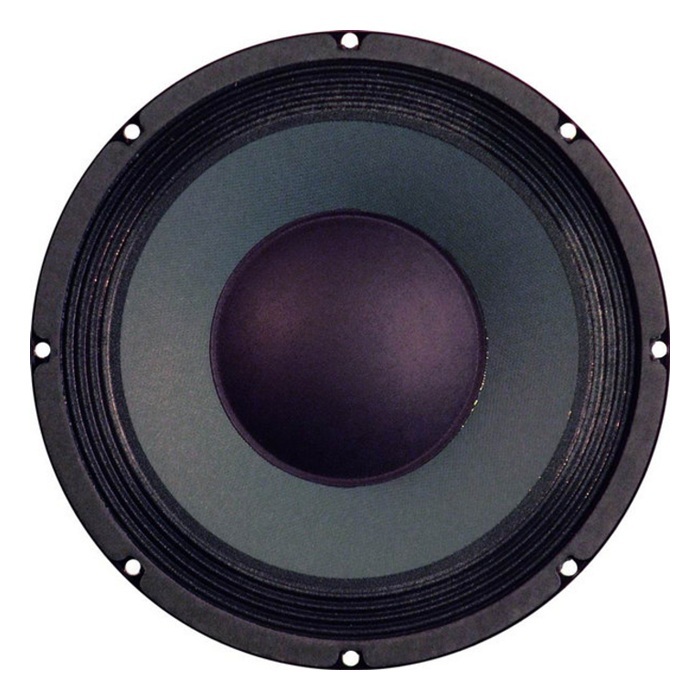

Eminence Gamma 10 8 Ohm 300W Loudspeaker Driver
300W 10" Driver 8 ohm
Product Code:   EMIGAM10A
Prices:
Qty   Price
1   £55.28
2-3   £54.45
4-7   £53.63
8+   £52.80
JAM Club: Login to see special offers and discounts
Not a member? Join Now
Brand: Eminence
Model:
Gamma 10
Availability:
10 IN STOCK (same day despatch available weekdays until 3pm)
Delivery:
         (Mainland UK)
(Click for European Delivery Prices)

Qty:
Eminence Gamma 10 - 8 ohm 300W 10" Driver

10" 300W 8 Ohm Loudspeaker driver from Eminence. For all high power bass applications including bass guitar.

Specifications:

  • Nominal Basket Diameter 10" / 254mm
  • Impedance 8 Ohms
  • RMS Power Rating 300 Watts
  • Frequency Response 60Hz - 5kHz
  • Sensitivity (1W/1m) 97dB
  • Voice Coil Diameter 2.5" / 63.5mm
  • Max. Crossover Frequency 5kHz
  • Rec. Enclosure Volume(Vented) 35-50 Liters/1.05-1.75 cu. ft.


Mounting Information:

  • Overall Diameter 10.09" / 256.2mm
  • Bolt Circle Diameter 9.66" / 245.4mm
  • Baffle Cutout Diameter 9.05" / 229.7mm
  • No. Of Mounting Holes 8
  • Mounting Hole Diameter 0.275" / 7mm
  • Overall Depth 4.17" / 106mm
  • Magnet Weight 42 oz.
  • Shipping Weight 11.0 lbs. / 5.0kg.


Thiele-Small Parameters:

  • Resonant Frequency (fs) 63 Hz
  • Impedance (Re) 5.43 ohms
  • Coil Inductance (Le) 0.84mH
  • Electromagnetic Q (Qes) .54
  • Mechanical Q (Qms) 9.04
  • Total Q (Qts) .51
  • Compliance Equivalent Vol. (Vas) 36.4 Liters/1.29cu. ft.
  • Voice Coil Overhang (Xmax) 1.6mm
  • Surface area of Cone (Sd) .03449m2
