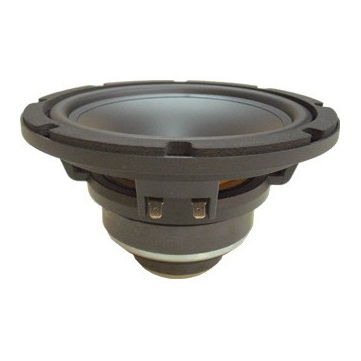

This loudspeaker is a single unit, two-way system, comprising of an 8" bass driver and a concentrically mounted tweeter. This provides a single point source and reduces phasing problems in the crossover region. The bass unit features a 1"3/4 (40 mm.) voice coil attached to a polypropylene cone and copper ring on the pole piece. This provides a smoothly extended frequency response up to 7 kHz, with reduced harmonic distortion. The compression tweeter shows excellent efficiency and fast response to transient attacks.
Key Features - Considerable power handling: 100 w AES (low frequecies) and 20 w AES (high frequecies)
- Combination of a 8" bass loudspeaker and a compression tweeter
- L.F. Unit: 1.5" (38.5 mm.) aluminium voice coil
- H.F. Unit: 1" (25.8 mm.) copper voice coil
- Aluminium diaphragm tweeter
-The concentric mounting reduces phasing problems in the crossover region
- Linear and coherent response
L.F. Unit Nominal Diameter 200 mm. 8 in.
Rated Impedance 8 ohms.
Minimum impedance 6.8 ohms.
Power capacity 100 w AES
Program power 200 w
Sensitivity 92 dB 2.83v @ 1m @ 2p
Frequency Range 25 - 8000 Hz
Recom. enclosure vol. 20 / 60 l 0.746 / 2.24 ft3
Voice coil diameter 38.5 mm. 1.5 in.
Magnetic assembly weight 2 kg. 4.4 lb.
BL factor 7.3 N/A
Moving mass 0.023 kg.
Voice coil length 14 mm.
Depth 120 mm. 4.72 in.
Air gap height 6 mm.
X damage 20 mm.
H.F. Unit Rated impedance 8 ohms.
Minimum impedance 6 ohms. @ 4 kHz
20 w AES
Frequency Range 3- 20 kHz
Sensitivity 102 dB
Voice coil diameter 25.8 mm. 1 in.
Flux density 1.4 T
BL Factor 4 N/A
This is NOT a stock item, and will be ordered/manufactured on request. Please call for a date.
